SEAMARK WL01-NAI SeaMark C1896T01
WL01-NAi
SEAMARK Work Light
- Maintenance-free LED technology for uniform area illumination
- Levelling sensor, water ingress detection, optical feedback and LED monitoring
- Standard NAi bus interface for power supply and communication
- Adjustable intensity pre-sets by NAi bus

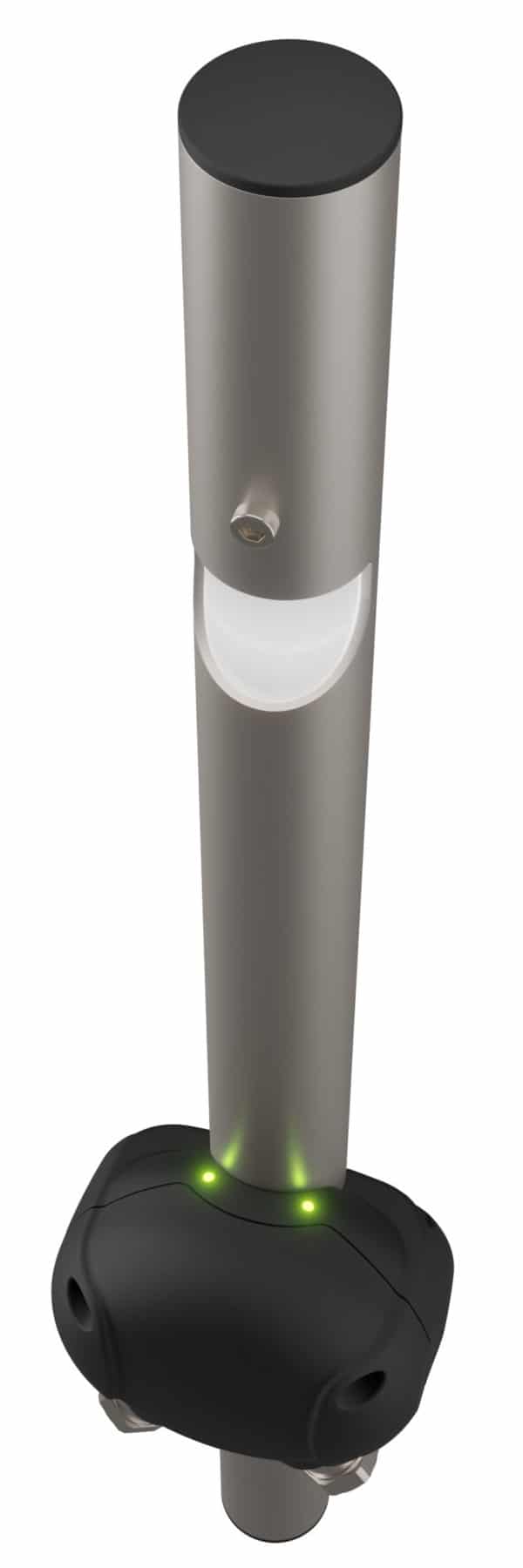

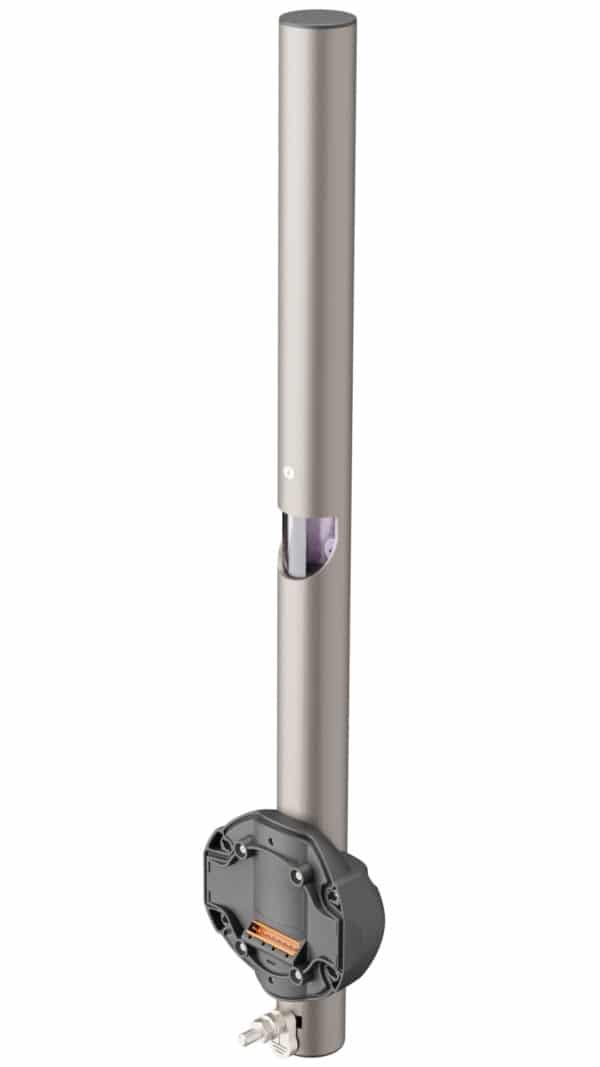

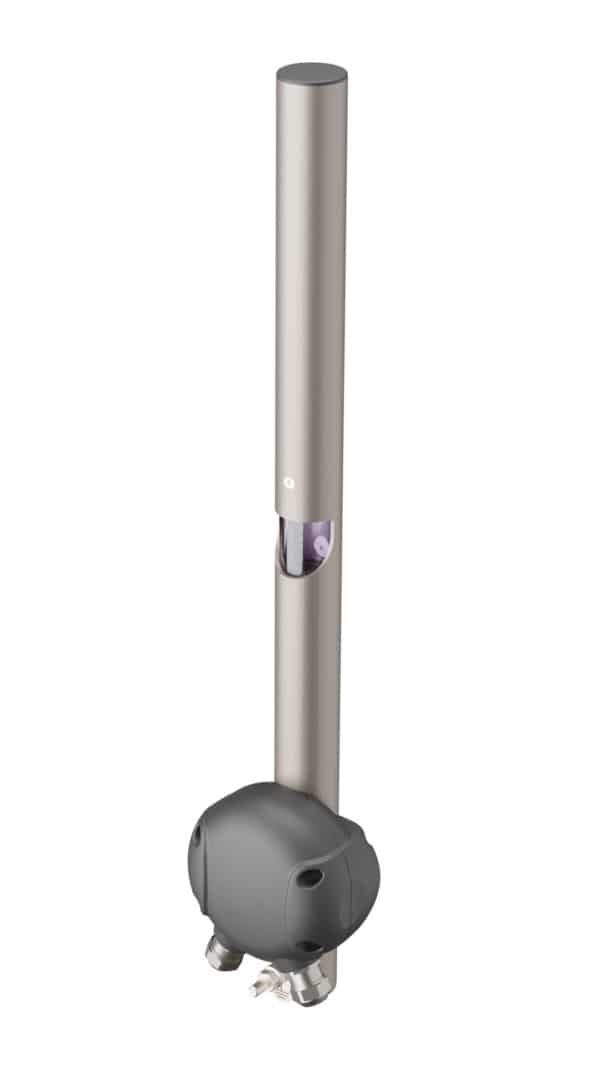

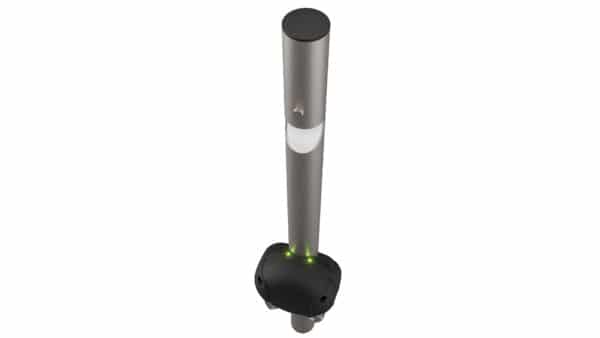

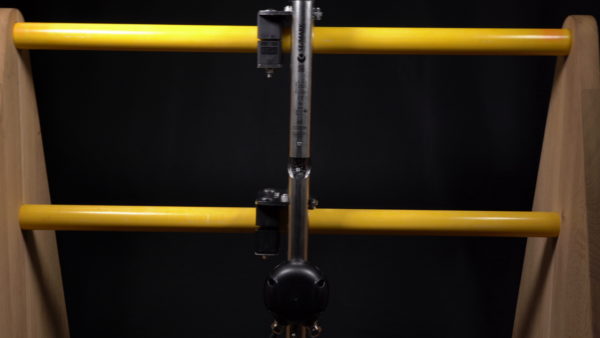

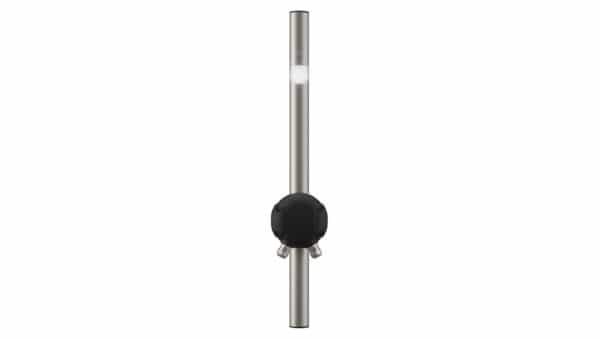

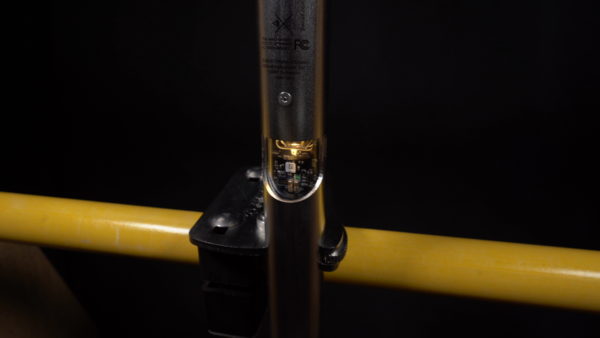

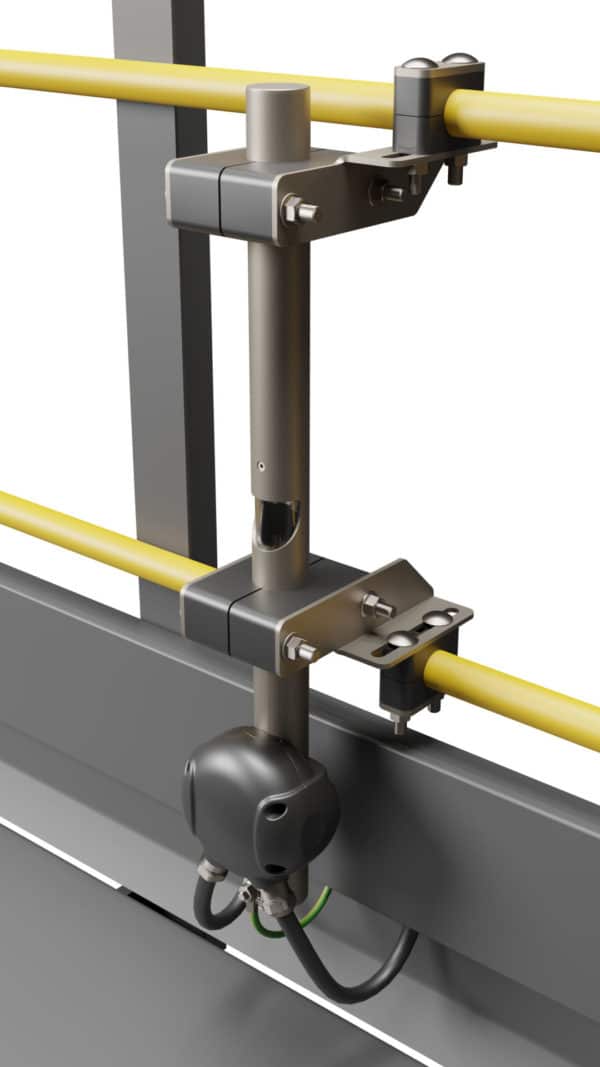

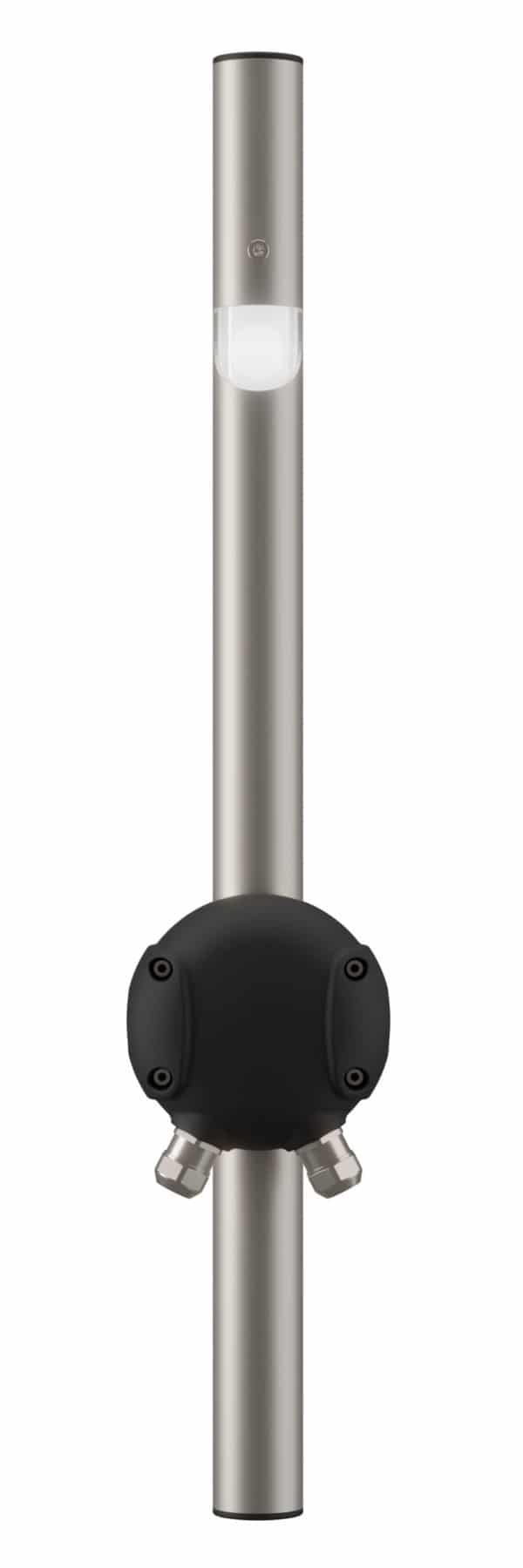

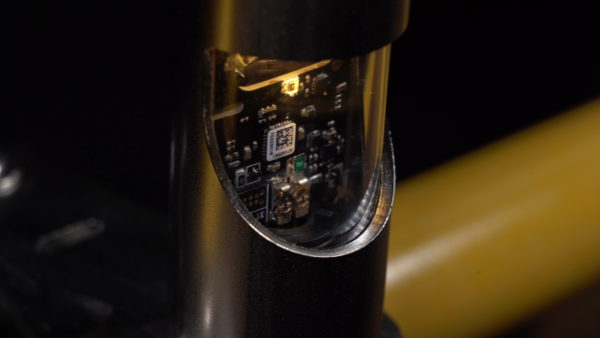

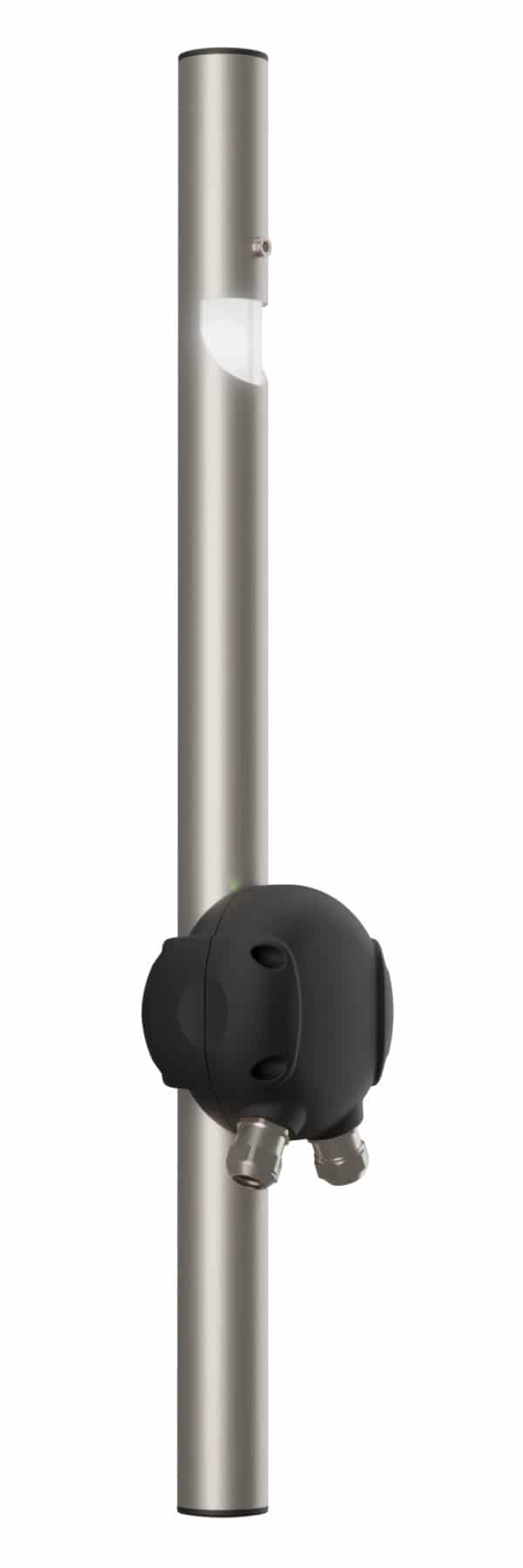

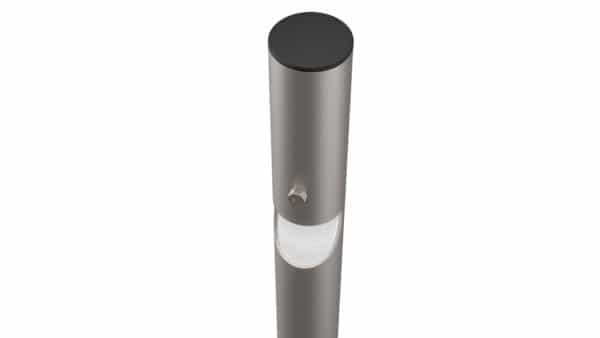

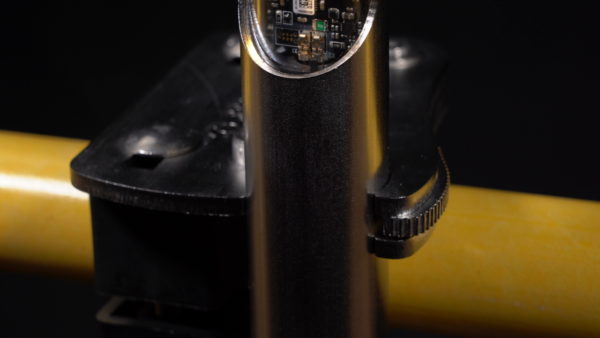

The SeaMark NAi work light is designed for uniform area illumination. The ruggedised stainless-steel design integrates the optical head and mechanical support into a single device.
A levelling sensor assures accurate installation whilst water ingress detection, optical feedback and LED monitoring allow for detailed monitoring and optimised maintenance.
The NAi bus supplies power, sets the intensity and transmits status and error messages to the central NAi controller with a SCADA interface
The work light shall be switched on and off remotely by either SCADA or a force on command from the NAi controller.
Technical Data

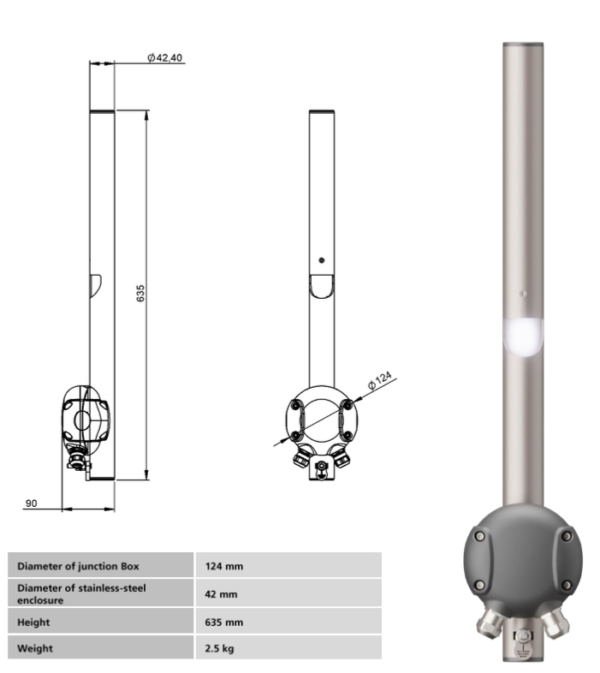

| DIMENSIONS & WEIGHT | |
| Diameter of junction Box | 124 mm |
| Diameter of stainless-steel enclosure | 42 mm |
| Height | 635 mm |
| Weight | 2.5 kg |
| MATERIAL | |
| Sheath | Stainless Steel 316L/ 1.4404 |
| Housing Junction Box | LEXAN™ Resin EXL5689 |
| Housing Optical Head | Makrolon® AL2647 |
| Gasket | THERMOLAST® K TC3GPZ |
| OPTICAL SYSTEM | |
| Light colour | 3000 K (White) |
| Maximum light intensity | TBC |
| Radiance lamp group (acc. to EN 62471:2008) | RG1 |
| Irradiance lamp group (acc. to EN 62471:2008) | RG0 |
| ELECTRICAL CONNECTION | |
| Electrical connection | Spring terminal block, max. 2.5 mm² |
| Operating voltage VIN | DC 24.0 V (-25 % / +25 %) |
| Power consumption (Peak, VIN = DC 24 V) DC | 4.0 W |
| ENVIRONMENTAL CONDITIONS | |
| Ambient temperature (operation) | -25 °C to 55 °C |
| Ambient temperature (storage / transport) | -40 °C to 70 °C |
| Humidity (operation / storage / transport) | 95 % r.h. up to 45 °C 70 % r.h. for T > 45 °C |
| Atmospheric pressure (operation / storage / transport) | 80 kPa to 108 kPa |
| Degree of protection (acc. To IEC 60529) | IP67 |
| Luminaire classification (acc. to EN 60598-1:2018) | Rough service luminaire |
| Impact protection (acc. to IEC 62262-1:2018) | IK08 |
| Lightning protection zone (acc. to IEC 62305-4:2010) | LPZ0B |
| ELECTRICAL SAFETY AND HEALTH | |
| Protection class | Class III |
| Overvoltage protection | Class III |
| Pollution degree | 3 |
| RELIABILITY | |
| Minimum LED lifetime | 100 000 h |
