L92-XXX-E

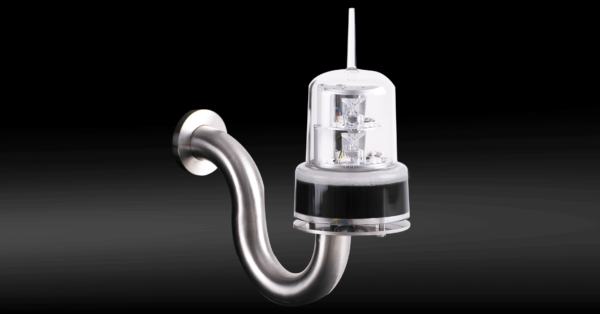

Low Intensity Tower Light
Red obstruction light for night time marking of structures that present a hazard to aviation. Red steady in night mode. Incorporates the benefits of advanced LED, optical and system control technologies to meet the most demanding applications.
Key Features
- Light fixture installed on the outside of wind turbine tower

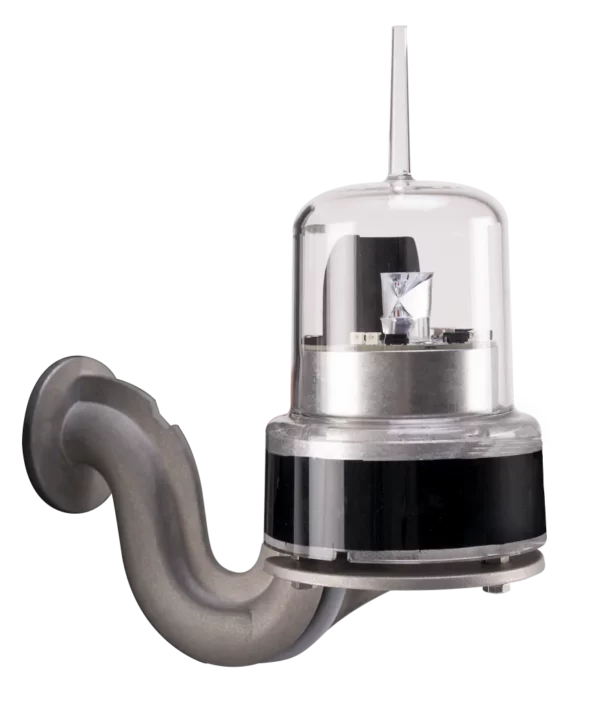

- Sealed non-metallic light design with no maintenance required over service life, with separate replaceable power supply unit
- Redundant long life LED light source
- Visible Red light output
- Five year warranty
- Lightweight and easy to install
- Optical design produces highly accurate and uniform light beam
- Extremely low power consumption
Extremely low power consumption

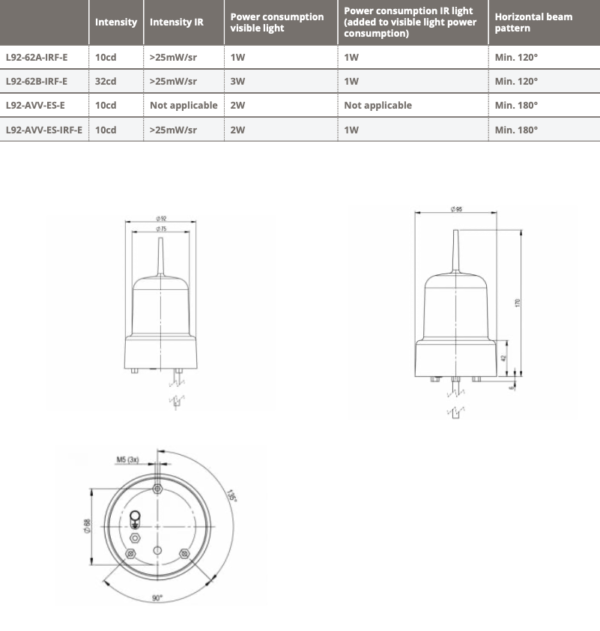

Technical Data
| PHYSICAL CHARACTERISTICS | |
| Dimensions | |
| Diameter | See Datasheet |
| Height | 170 |
| Weight | 1kg |
| Design degree of protection | IP66 |
| Operating temperature range | -40°C to +55°C |
| SYSTEM DESIGN, CONTROL AND MONITORING | |
| Use multiple L92 lights in a wind turbine tower light system with an Orga MLC400 controller | |
| Bracket available upon request | |
| PERFORMANCE CHARACTERISTICS | |
| Horizontal beam pattern | See Datasheet |
| Intensity Red light | See Datasheet |
| Intensity IR light | See Datasheet |
| Infra-Red wavelength ~850nm | |
| Infra-Red beam follows visible light, or beam is according to local standards | |
| ELECTRICAL CHARACTERISTICS | |
| Operating voltage | 24 Vdc |
| Power consumption | See Datasheet |
| Overvoltage protection | Class III according to IEC61643-1 |
Documents
Datasheet ORGA L92-XXX
