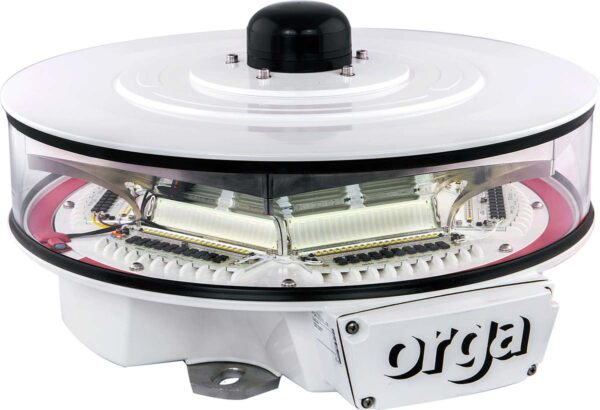

Orga L500

High intensity LED obstruction light



High intensity Obstruction light for day and night time marking of structures that present a hazard to aviation. White flashing in day and white flashing or red flashing / steady /Infra-Red in night mode. Incorporates the benefits of advanced LED, optical and system control technologies to meet the most demanding applications.

  • Five year warranty
  • Housing based on 30 years of offshore product design experience
  • Lightweight and easy to install
  • Extremely low wind factor
  • Integrated design with built-in photocell and monitoring – no additional power supply enclosures required
  • Built in GPS for synchronisation
  • No maintenance required over service life
  • Orga optical design produces highly accurate and uniform narrow light beam
  • Optional Integrated automatic flash synchronisation between lights
  • Extremely low power consumption
  • Constant power draw for white variants – eliminates high peak power demands especially important when running from UPS
  • 15 year field proven power supply technology
  • Long life power supply to match LED life, does not use electrolytic capacitors
  • Made in The Netherlands



Technical Data
PHYSICAL CHARACTERISTICS

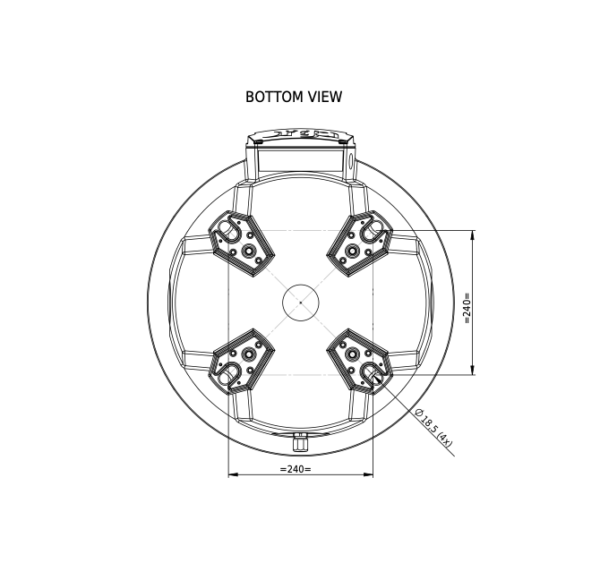

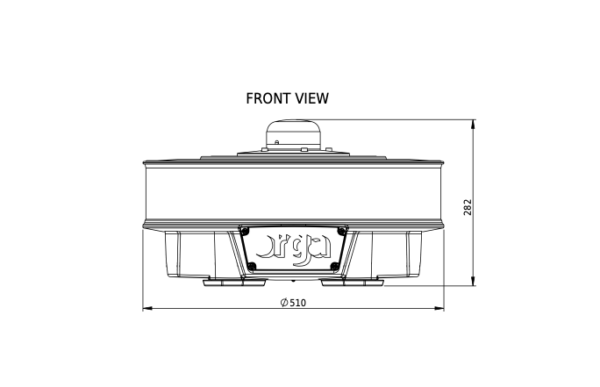

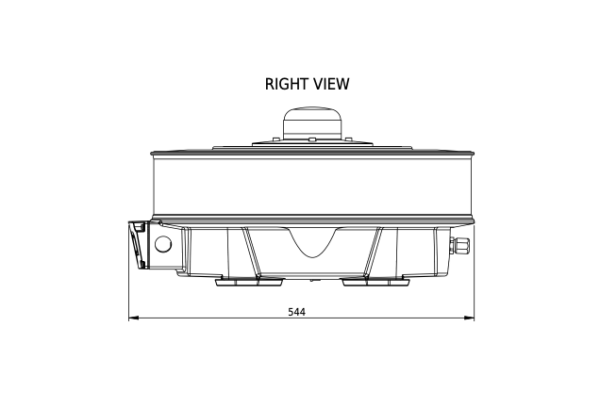

Dimensions
DiameterØ510mm
Height240mm
Weight23kg
Design degree of protectionIP65
Operating temperature range-40°C to +45°C
Shipping information666 x 666 x 530 mm; approx. 24.9kg
Supplied with pre-mounted Orga cable for easy installation and high reliability Ready to use
Cable bending radius7x cable diameter
Outer cable diameter ø12.5 +/- 0.5mm
Level indicators for correct mounting
ELECTRICAL CHARACTERISTICS
Operating voltage120-240Vac nominal 50-60Hz
Power factor>0.9 in day intensity mode
Power consumption heaterstandard 95w
Overvoltage protectionClass III according to IEC61643-1
