Orga L550
Offshore Medium Intensity Obstruction Light
Obstacle light for day and night time marking of structures that present a hazard to aviation. White flashing in day and white flashing or Red flashing / steady in night mode. Incorporates the benefits of advanced LED, optical and system control technologies to meet the most demanding applications.
Key Features
- Five year warranty
- Housing based on 30 years of experience offshore product design experience
- Lightweight and easy to install
- Extremely low wind factor
- Integrated design with built-in photocell and monitoring –
no additional power supply enclosures required - No maintenance required over service life
- Orga optical design produces highly accurate and uniform narrow light beam
- Optional integrated GPS based flash synchronisation between lights. UTC 0.0.0
- Extremely low power consumption
- 15 year field proven power supply technology
- Long life power supply to match LED life, does not use electrolytic capacitors
- Made in the Netherlands
Configuration Options
- Flash patterns configured to Local requirements
- Infrared
- Germany Feuer W rot with Infrared, STAC, FAA etc
Technical Data
| PHYSICAL CHARACTERISTICS | |

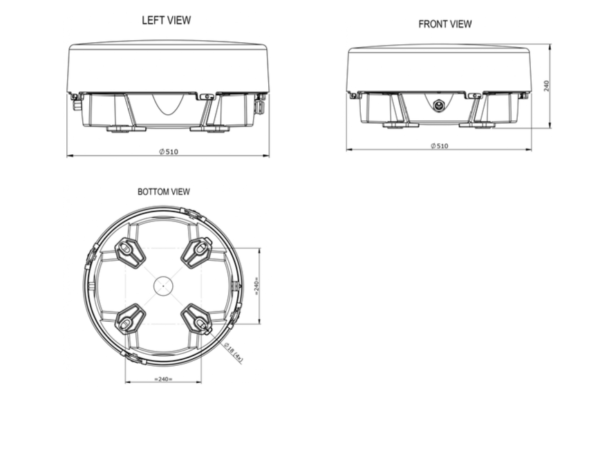

| Dimensions | |
| Diameter | Ø510mm |
| Height | 240mm |
| Weight | 12 kg |
| Design degree of protection | IP65 |
| Operating temperature range | -40 ℃ to +55 ℃ |
| Shipping information | 550 x 550 x400 mm; approx. 16 kg |
| Supplied with pre-mounted Orga cable for easy installation and high reliability ready for use | |
| Cable bending radius static: 7x cable diameter | |
| Outer cable diameter | Ø12.5 +/- 0.5 mm |
| Cable weight | 260 g/m |
| Level indicators for correct mounting | |
| PERFORMANCE CHARACTERISTICS | |
| Horizontal beam pattern | 360° |
| Flashing | See Datasheet |
| Effective intensity | See Datasheet |
| Vertical beam pattern | 3° minimum |
| ELECTRICAL CHARACTERISTICS | |
| Operating voltage | 48 Vdc; 40-64 Vdc |
| Power consumption | See Datasheet |
| Overvoltage protection | Class III according to IEC61643-1 |
Documents
Datasheet L550-xxx-G
