Orga L550-HHS+SRO+IR
Helihoist & SAR lights
Helihoist (HHS) and Search and Rescue lights (SRO) play important roles in an offshore wind farm to communicate to a pilot the whereabouts and status of a turbine.
- Helihoist green – indicates the status of the turbine for safe helicopter hoisting operations.
- SRO red – indicates a target turbine during emergency cases. T
- Infrared module – the infrared module on the SRO light is always on. This light enables pilots with night vision goggles to see the turbine.
- Rugged and Low Maintenance – the Light’s low center of gravity reduces stress due to wind. It’s housing is designed for a 30 year windfarm lifespan. High quality LED’s for long product lifetime.
- CAP-437 – Complies with UK CAA CAP-437 standards for helicopter hoist lights.
Configuration Options
Helihoist (HHS) green light
Search & Rescue Operations (SRO) red light with Infrared
Combined HHS & SRO with infrared
Technical Data
| PHYSICAL CHARACTERISTICS | |

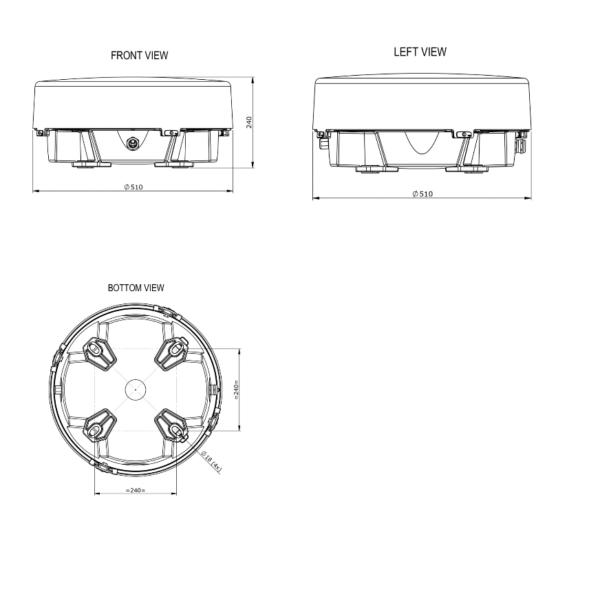

| Dimensions | |
| Diameter | Ø510mm |
| Height | 240mm |
| Weight | 12kg |
| Design degree of protection | IP65 |
| Operating temperature range | -40°C to +55°C |
| Shipping information | 550 x 550 x 400 mm; approx. 16kg |
| Supplied with pre-mounted Orga cable for easy installation and high reliability | |
| Cable bending radius | 120mm |
| Outer cable diameter | ø14.5 +/- 0.5mm |
| Level indicators for correct mounting | |
| PERFORMANCE CHARACTERISTICS | |
| Horizontal beam pattern | 360° |
| Steady and flashing mode available according to hoist operation | |
| Effective intensity: According to CAP437 Helicopter hoist light, or Search and Rescue light | |
| Vertical beam pattern: according to CAP437 Helicopter hoist light, or search and rescue light | |
| ELECTRICAL CHARACTERISTICS | |
| Operating voltage | 120-240Vac |
| Power consumption | See Datasheet |
