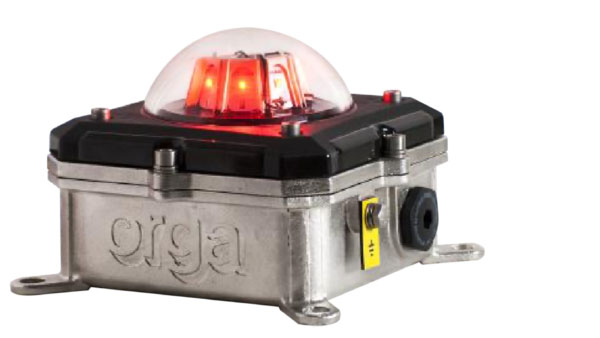

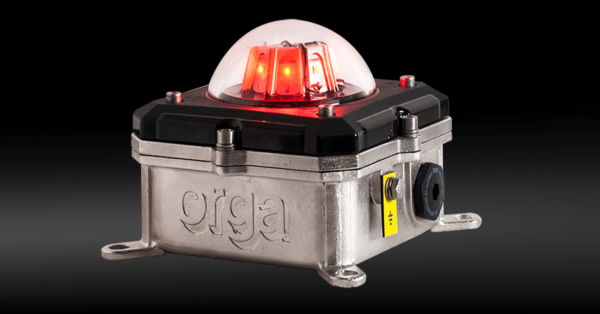

Orga L85SA R DC

Red aeronautical obstruction light

The LA85SA-R red LED low intensity aeronautical obstruction lights are used to indicate objects high in the air that could be a hazard for pilots.

  • Rugged and Low Maintenance – The impact resistant dome and stainless steel body, designed to IP66 classification are made for the rough offshore environment.
  • ICAO – Complies with ICAO low intensity type B requirements
  • Easy Handling – Compact design, interchangeable parts and easy to open cable connection compartment.



Configuration Options

Available intensities – 10cd, 32cd 200cd

Technical Data
PHYSICAL CHARACTERISTICS

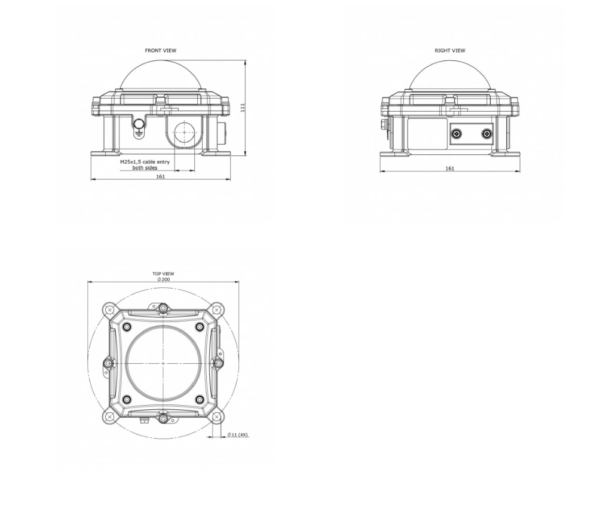

Dimensions (L x W x H)161 x 161 x 111mm
Weight3.6kg
Design degree of protectionIP66
Operating temperature range-40°C to +60°C
PERFORMANCE CHARACTERISTICS
Steady burningRed
Intensity32cd minimum (all angles above horizon)
Horizontal coverage360°
Vertical beam profileAs per ICAO
Colour chromaticity within the boundaries as specified by ICAO
Light sourceLED
(100,000 hours average life)
ELECTRICAL CHARACTERISTICS
Operating voltage20-30Vdc
Power consumption5W
Connection detailsM4; two M25x1.5 cable entries
Earth connectionInternal M4 and external M6
