IDSL NAi

SeaMark ID Sign Light

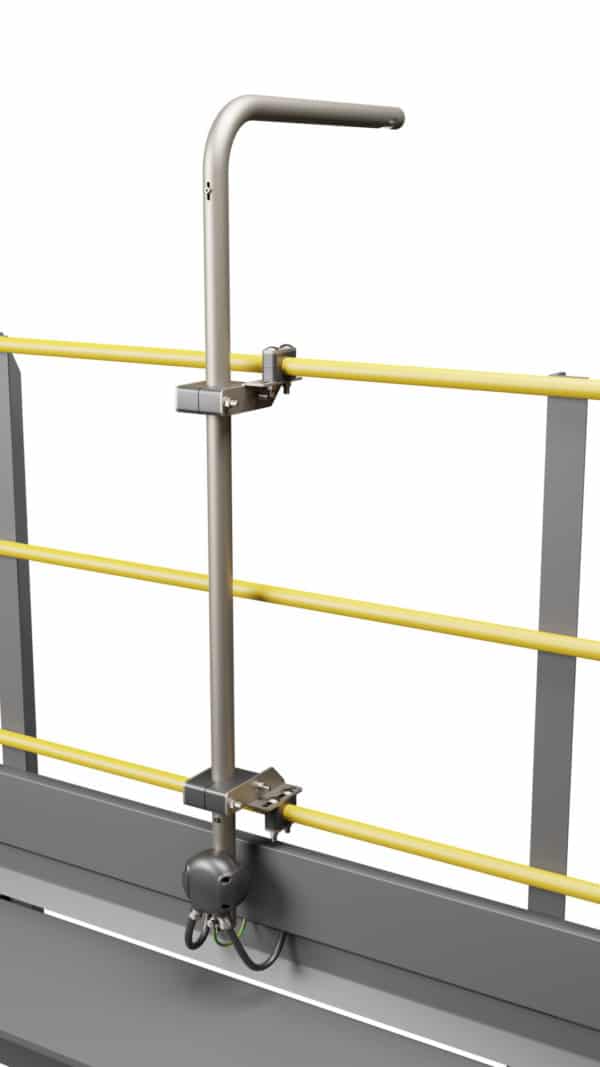

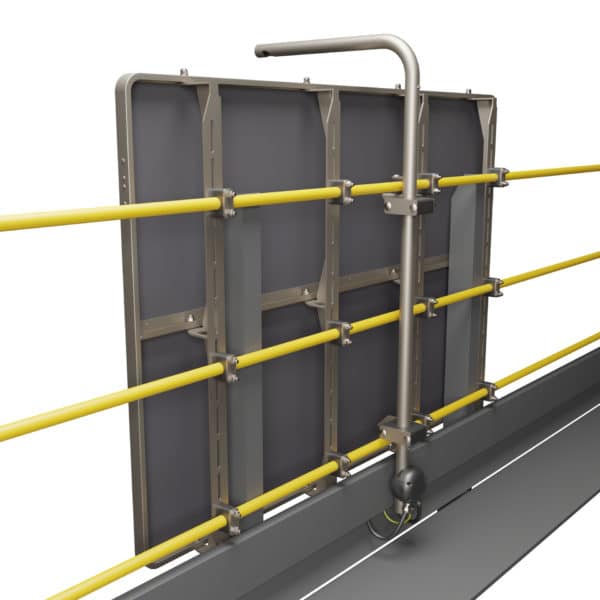

Designed for the uniform illumination of ID signs up to 1500 mm high by 2200 wide to satisfy IALA recommendation O-139. The rugged stainless-steel design integrates the optical head and mechanical support.

NAi interface – Communication and power are provided through the NAi network.

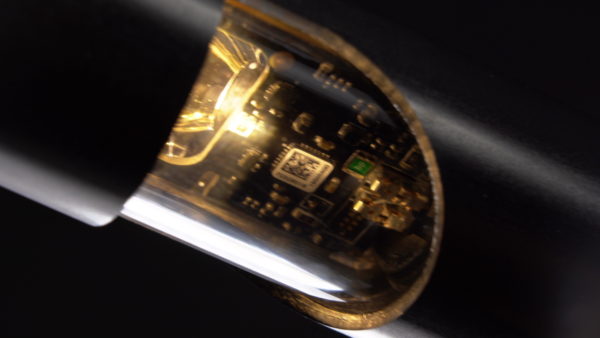

LED technology – Using the highest quality LED technology, the LED 160 provides the highest light output with low power consumption.

Low maintenance  – With simple interfaces, LED technology and remote monitoring, the Seamark Marine Lantern is extremely low maintenance.

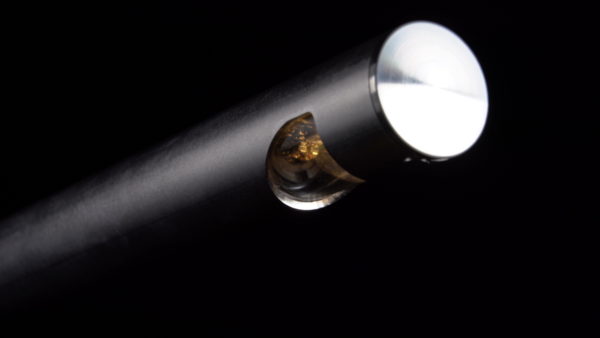

Smart photocell – A smart photocell ensures accurate day to night switching by distinguishing between the light produced by the ID Sign Light and ambient light. The small photocell also functions as an autonomous fall-back solution should communication on the bus be interrupted. The light is then switched on when the ambient light level falls below a minimum, pre-set, configurable level.

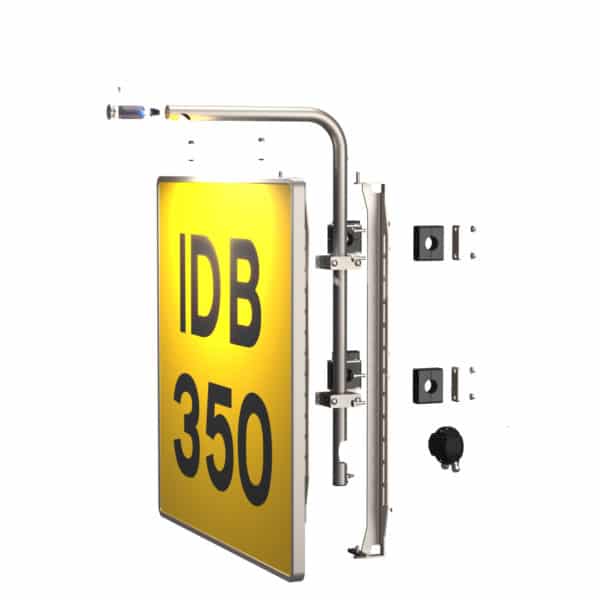

Configuration Options

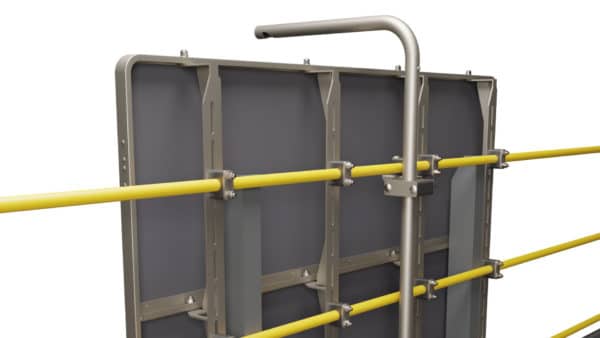

Available intensities to illuminate – 350mm & 1000mm signboards*

*Signboards sold separately



Technical Data

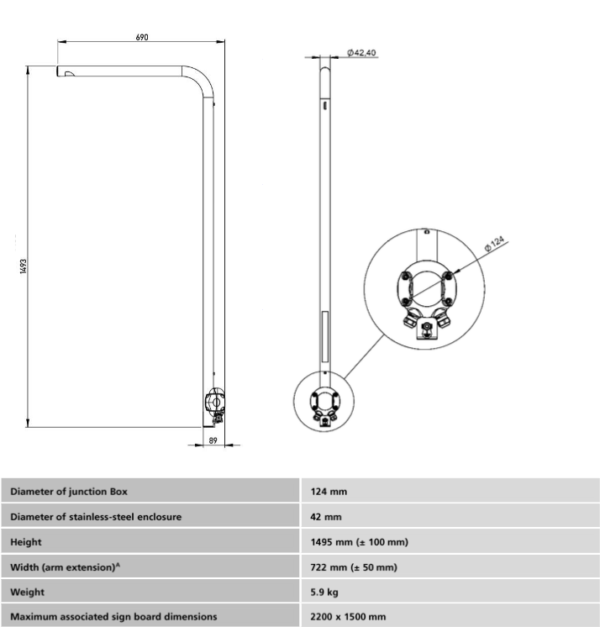

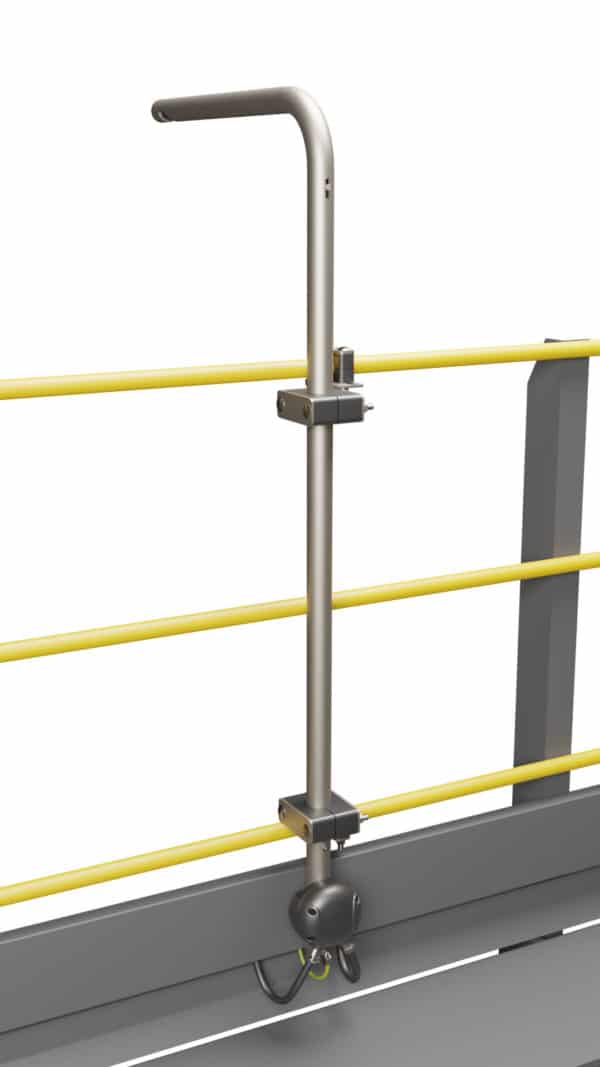

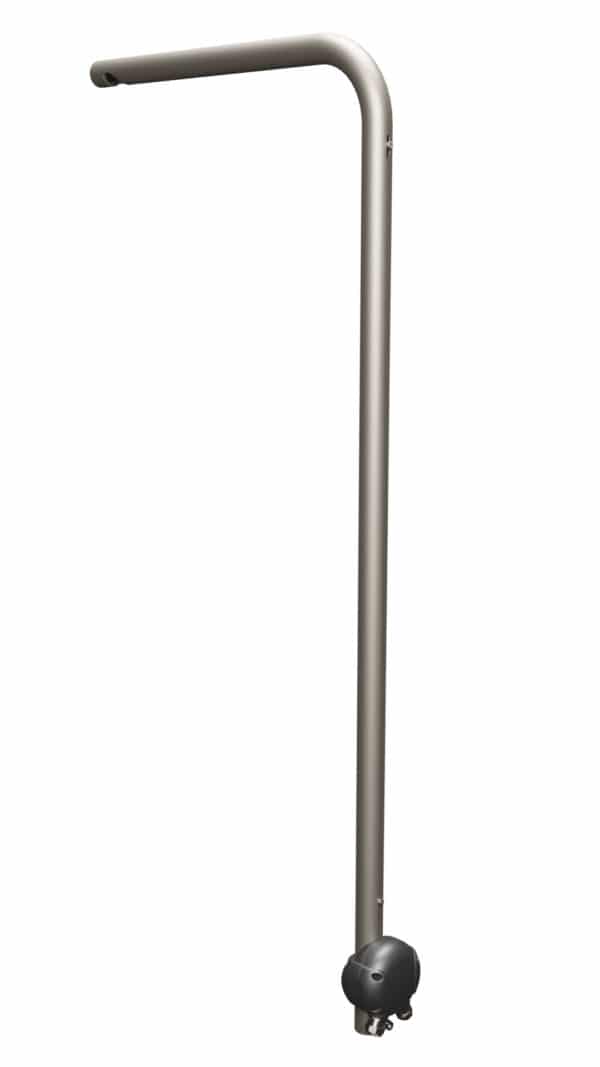

DIMENSIONS & WEIGHT

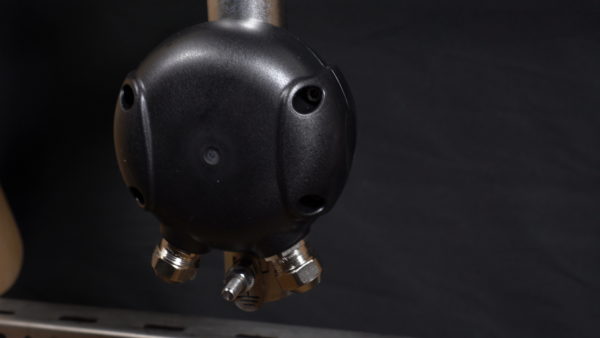

Diameter of junction Box124 mm
Diameter of stainless steel enclosure42 mm
Height1495 mm (± 100 mm)
Width (arm extension) A722 mm (± 50 mm)
Weight5.9 kg
Maximum associated sign board dimensions2200 x 1500 mm
MATERIAL
TubeStainless Steel 316L/ 1.4404
Housing Junction BoxLEXAN™ Resin EXL5689
Housing Optical HeadMakrolon® AL2647
GasketTHERMOLAST® K TC3GPZ

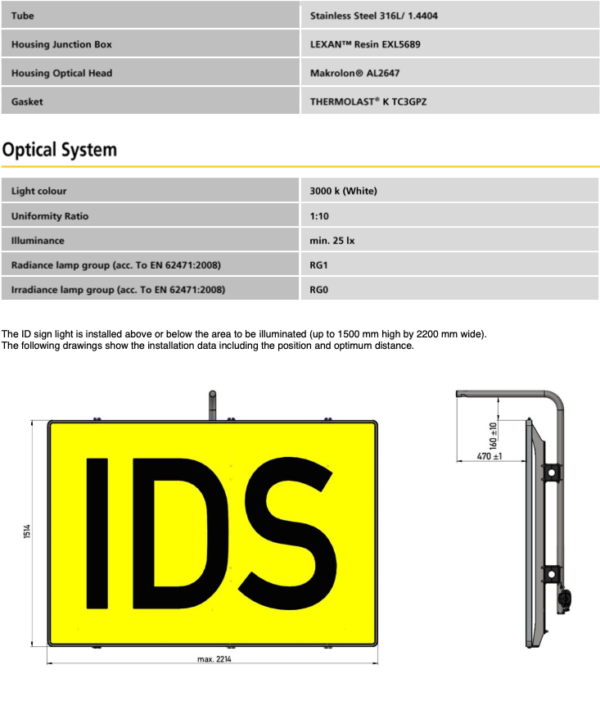

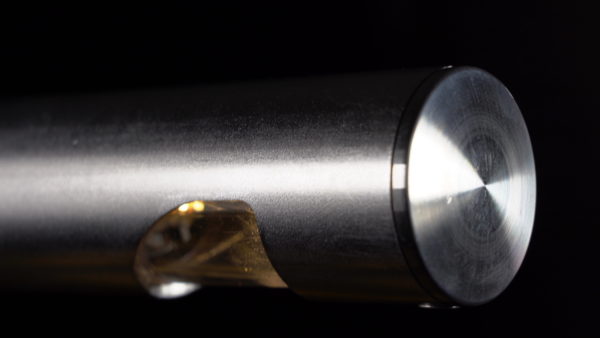

OPTICAL SYSTEM
Light colour3000 K (White)
Uniformity Ratio1:10
Illuminancemin. 25 lx
Radiance lamp group
(acc. To EN 62471:2008)
RG1
Irradiance lamp group
(acc. To EN 62471:2008)
RG0
ELECTRICAL CONNECTION

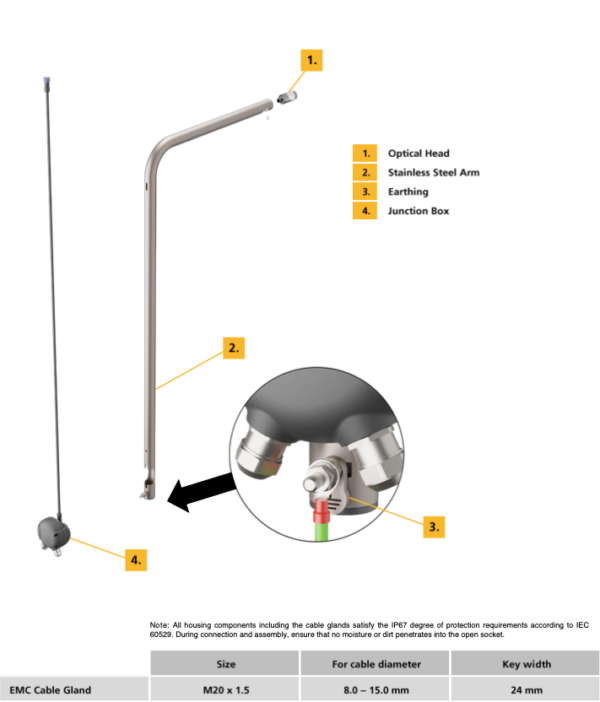

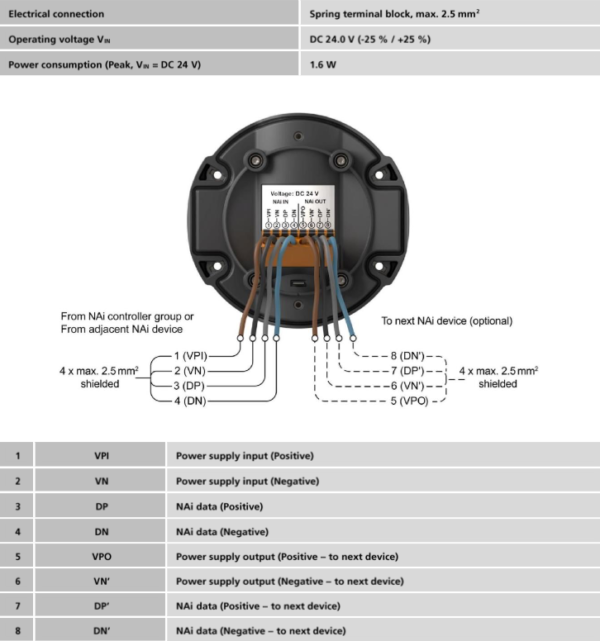

Electrical connectionSpring terminal block, max. 2.5 mm²
Operating voltage VINDC 24.0 V (-25 % / +25 %)
Power consumption
(Peak, VIN = DC 24 V)
1.6 W
ENVIRONMENTAL CONDITIONS
Ambient temperature (operation)-25 °C to 55 °C
Ambient temperature
(storage / transport)
-40 °C to 70 °C
Humidity
(operation / storage / transport)
95 % r.h. up to 45 °C
70 % r.h. for T > 45 °C
Atmospheric pressure
(operation / storage / transport)
80 kPa to 108 kPa
Degree of protection (acc. To IEC 60529)IP67
Luminaire classification
(acc. To EN 60598-1:2018)
Rough service luminaire
Rough service luminaireIK08
Wind zone classification
(acc. To IEC 61400-1 Ed. 4)
I
Lightning protection zone
(acc. To IEC 62305-4:2010)
LPZ0B
ELECTRICAL SAFETY AND HEALTH
Protection classClass III
Overvoltage protectionClass III
Pollution degree3
Reliability
IALA Category1ᴮ (assumed MTTR of 96 h)
Minimum LED lifetime100 000 h

Some Product specifications can vary to the below based upon configuration variations. Please double check the appropriate technical datasheet.
