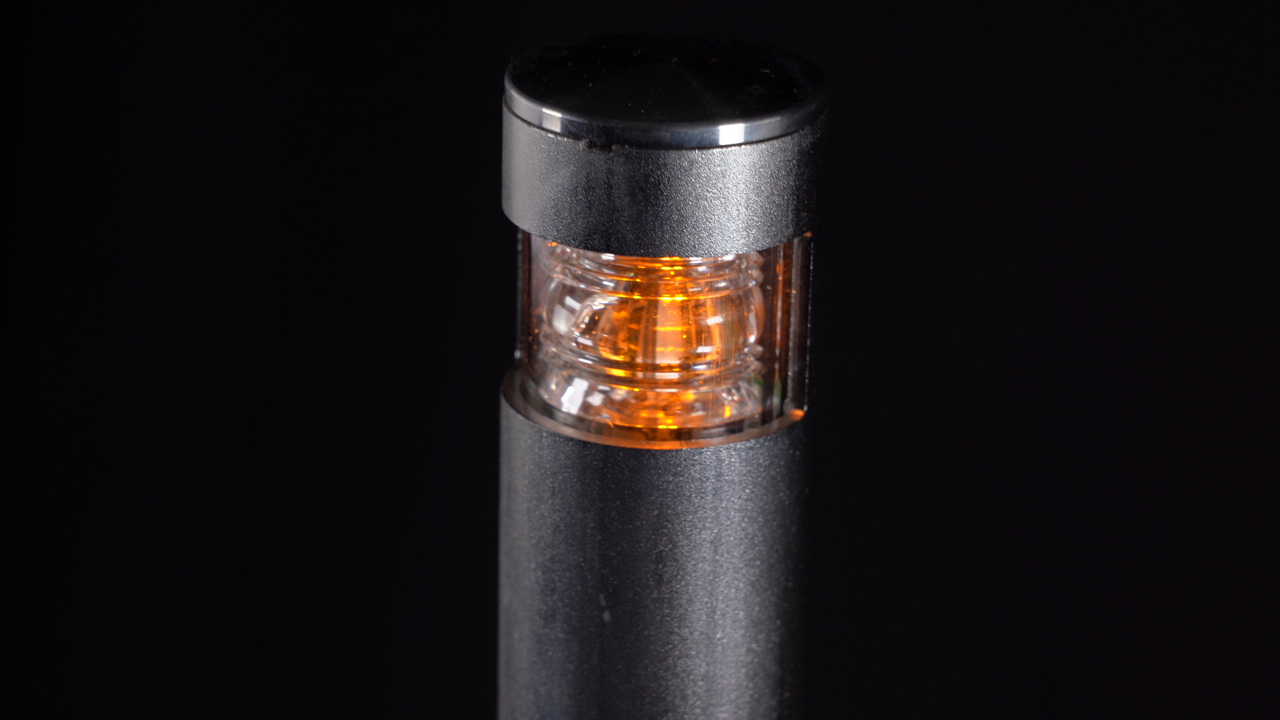

SeaMark

Marine Lantern

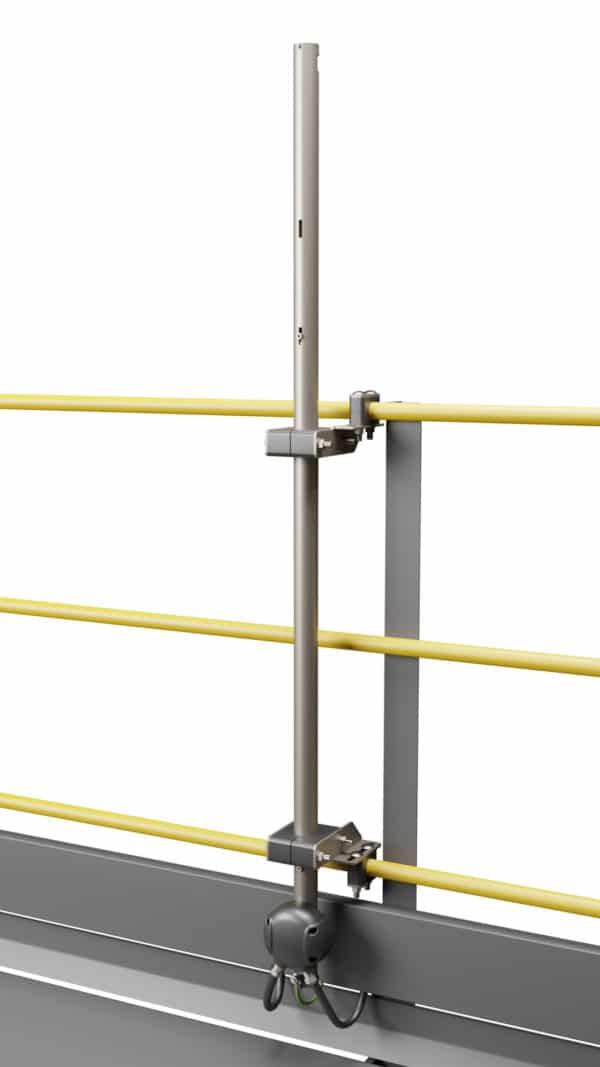

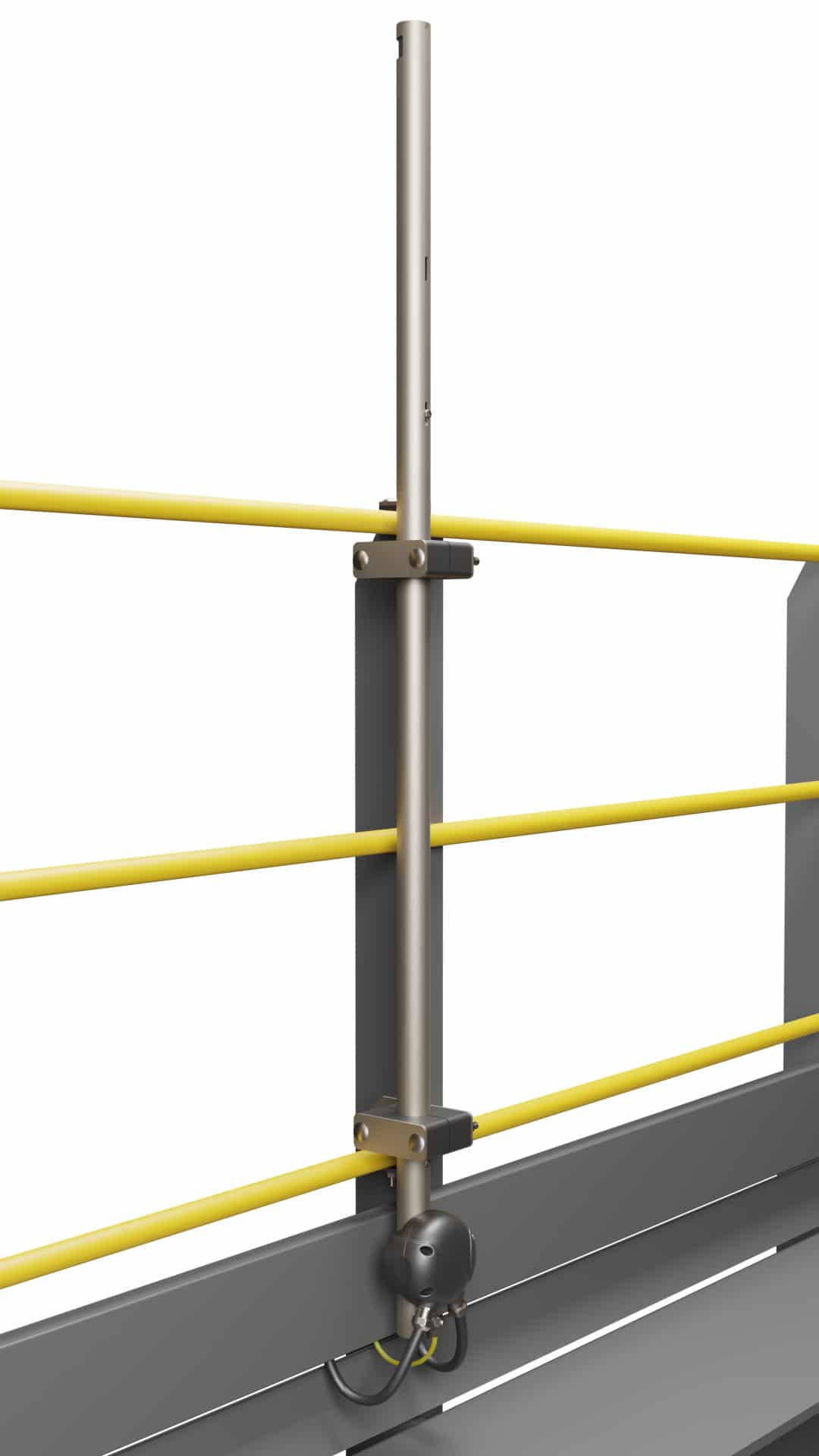

The next generation marking for offshore wind turbines. It comes in three intensities; 2NM, 3NM and 5NM yellow. The new design is made for easy handling, installation and maintenance.

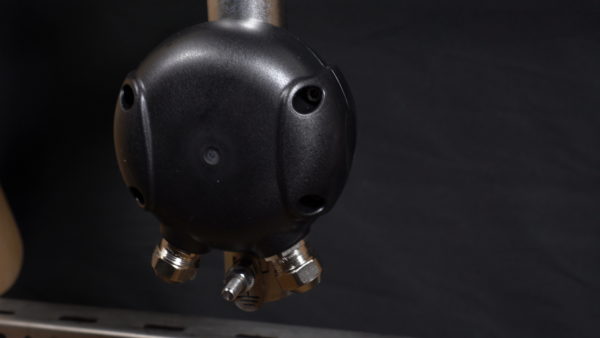

Rugged – Stainless steel housing and watertight electronics protect against the harsh offshore environment.

NAi interface – Communication and power are provided through the NAi network.

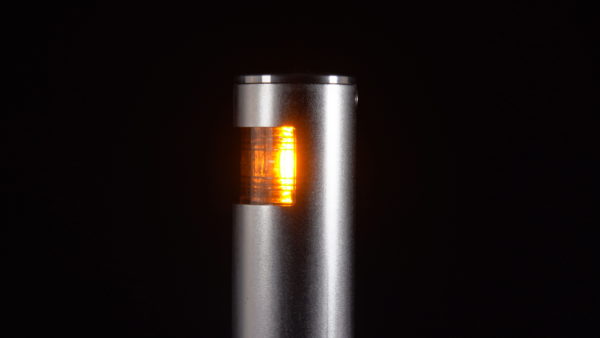

LED technology – Using the highest quality LED technology, the SeaMark Marine Lantern provides the highest light output with low power consumption.

Low maintenance – With simple interfaces, LED technology and remote monitoring, the Seamark Marine Lantern is extremely low maintenance.

Standards – The SeaMark Marine Lantern satisfies the IALA recommendation G1162 guidelines for the Marking of Offshore Man-Made Structures



Configuration Options

  • Available Intensities – 2 & 5NM
  • Integrated UPS



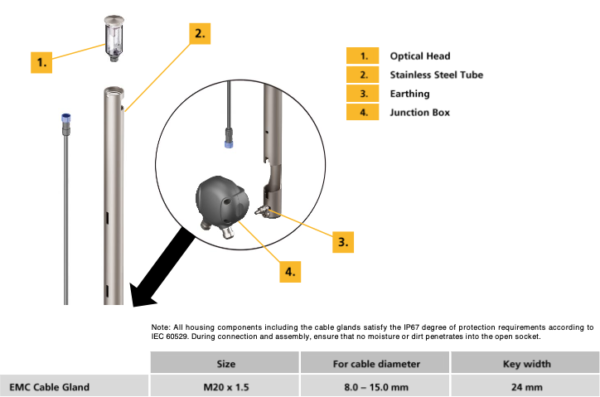

Technical Data (ML 05 NAi)

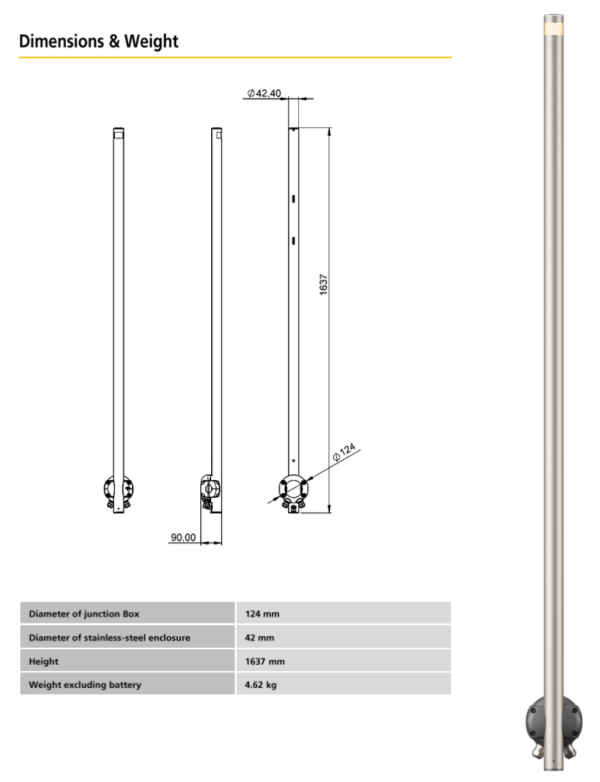

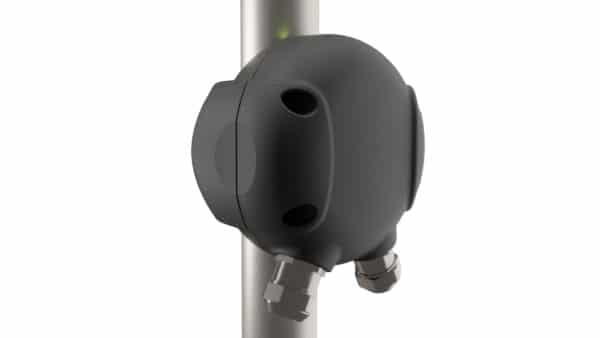

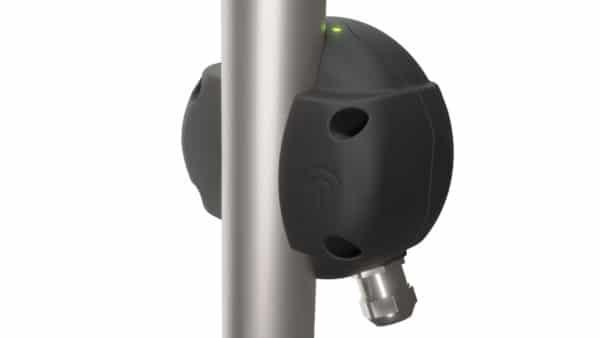

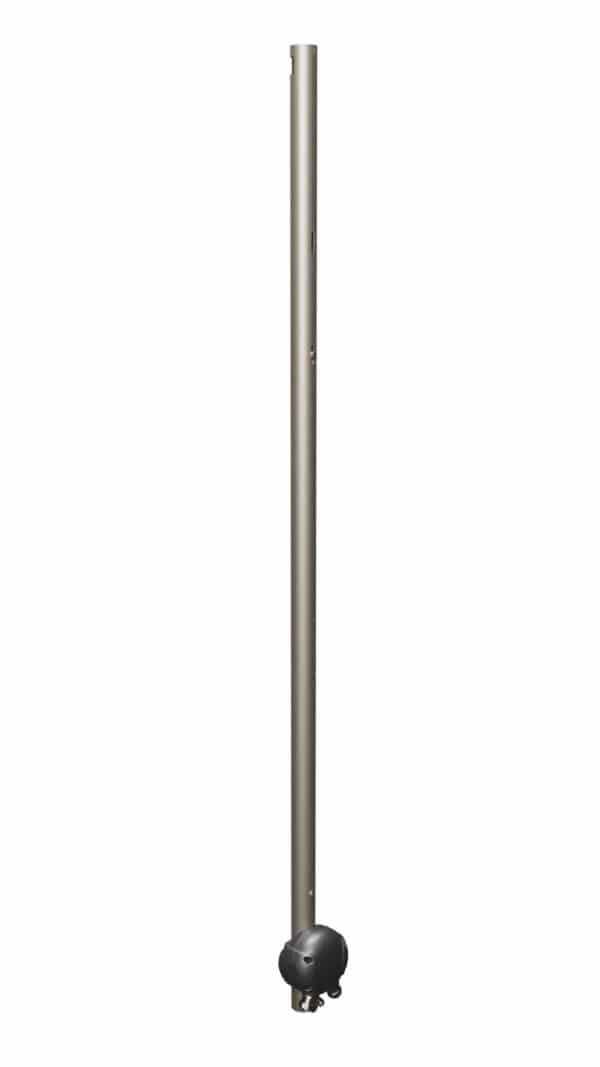

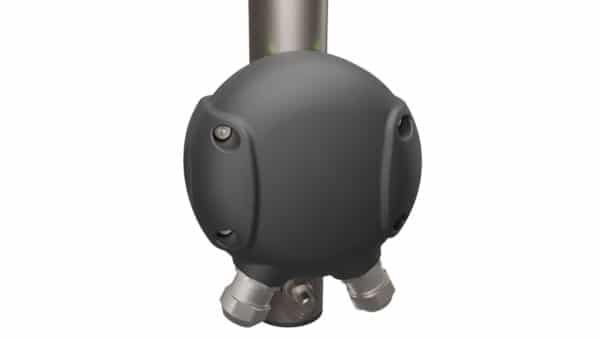

DIMENSIONS & WEIGHT
ParameterStandard UPS
Diameter of junction Box124 mm
Diameter of stainless steel enclosure42 mm
Height1637 mm
Weight excluding battery4.62 kg
MATERIAL
TubeStainless Steel 316L/ 1.4404
Housing Junction BoxLEXAN™ Resin EXL5689
Housing Optical HeadMakrolon® AL2647
GasketTHERMOLAST® K TC3GPZ

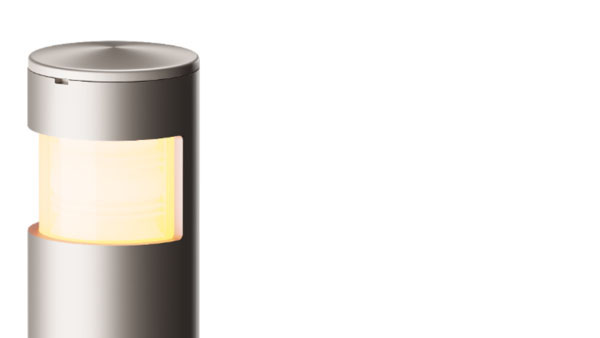

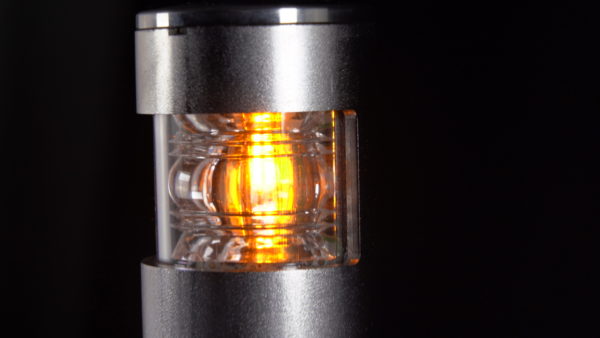

OPTICAL SYSTEM
Light colourYellow (according to IALA Recommendation R0201 (E-200-1) Marine Signal Lights – Colours)
Mean light intensity
(along the optical axis)
149 cd (± 3 %)
Beam angle (vertical)5° FWHM
Beam angle (horizontal)182° ±2°

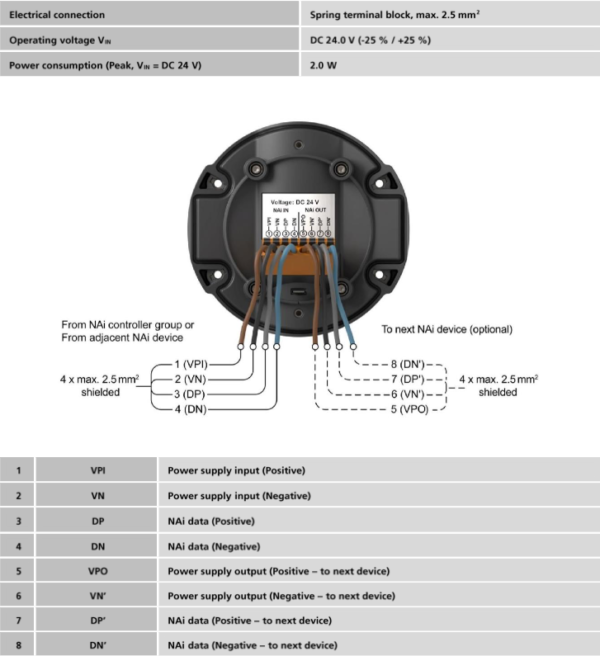

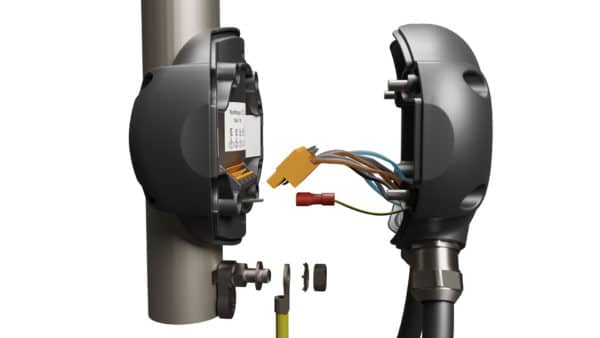

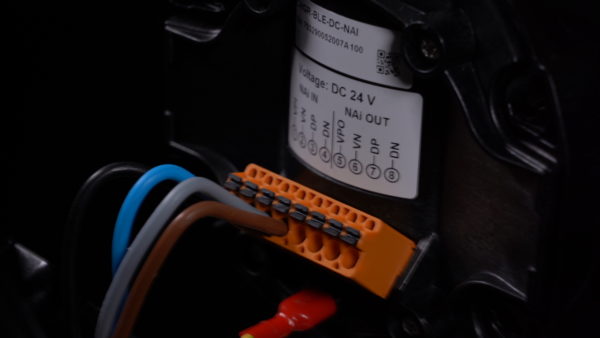

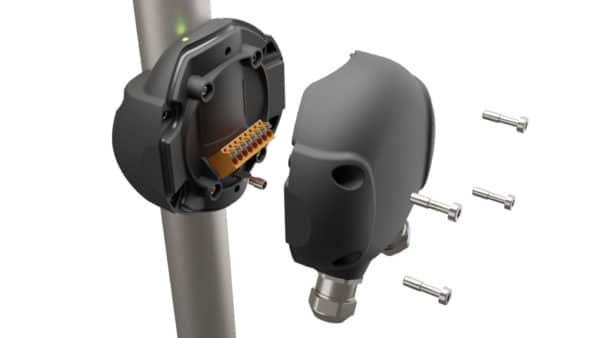

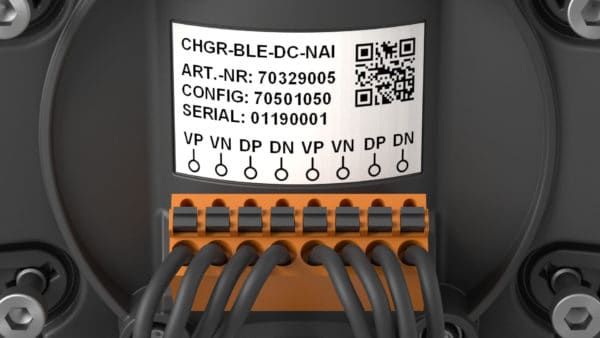

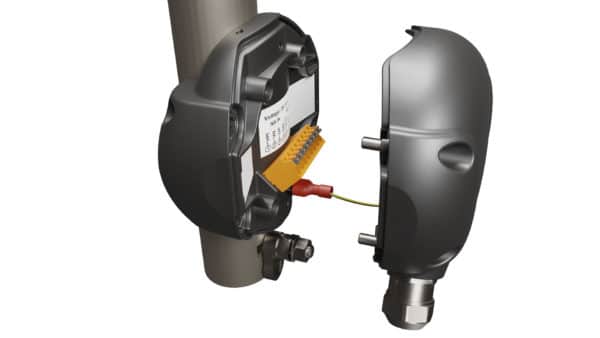

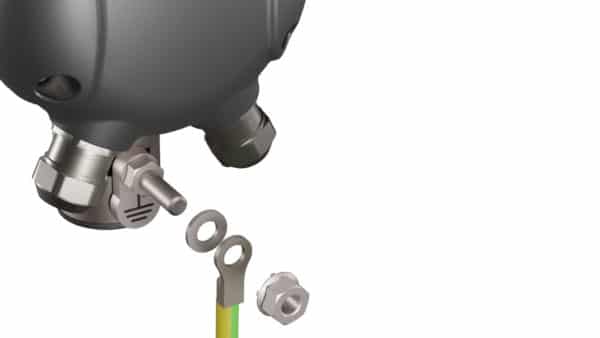

ELECTRICAL CONNECTION
Electrical connectionSpring terminal block, max. 2.5 mm²
Operating voltage VINDC 24.0 V (-25 % / +25 %)
Power consumption
(Peak, VIN = DC 24 V)
2.0 W
ENVIRONMENTAL CONDITIONS
Ambient temperature (operation)-25 °C to 55 °C
Ambient temperature
(storage / transport)
-40 °C to 70 °C
Humidity
(operation / storage / transport)
95 % r.h. up to 45 °C
70 % r.h. for T > 45 °C
Atmospheric pressure
(operation / storage / transport)
80 kPa to 108 kPa
Degree of protection (acc. To IEC 60529)IP67
Luminaire classification
(acc. To EN 60598-1:2018)
Rough service luminaire
Rough service luminaireIK08
Lightning protection zone
(acc. To IEC 62305-4:2010)
LPZ0ʙ
ELECTRICAL SAFETY AND HEALTH
Protection classClass III
Overvoltage protectionClass III
Pollution degree3
RELIABILITY
IALA Category1ᴮ (assumed MTTR of 96 h)
Minimum LED lifetime100 000 h

Some product specifications can vary to the below based upon configuration variations. Please double check the appropriate technical datasheet.
