Self-Contained Marine Lanterns

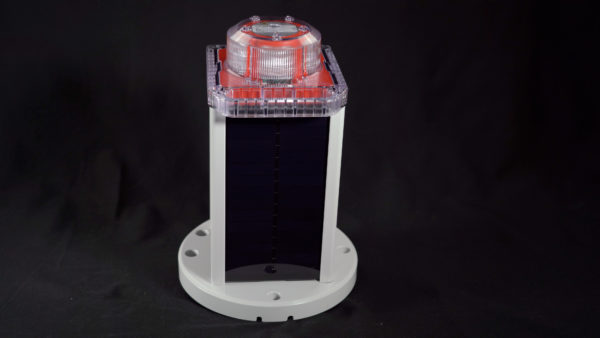

With a durable, large-format solar engine, and wide-coverage remote monitoring capabilities, the M860 is engineered for consistent, reliable performance at remote installations and in challenging insolation locations.

  • Intuitive Setup & Programming

Top-mounted 4-character LED display and simple “tap to activate” functionality allows users to easily check light settings without the need for an external controller. Built-in calendar function allows for automatic de-activation during off-season months. Programmable with optional IR remote.

  • Scalable, Cost Effective Design

Customizable for best value-for-performance at each installation location. Choose from standard or wide divergences (for fixed or floating applications), and multiple battery pack options.

  • Intelligent Energy Management

Combines best-in-class, high-efficiency solar panels and MPPT (Maximum Power Point Tracking) with Carmanah’s patented Energy Management System (EMS) for maximum battery life and light performance in even the harshest of environments.

  • Durable, Low Maintenance

A standalone, maintenance-free unit with integrated solar panels, battery, electronics, and LED light source. Easily replaceable battery extends service life well beyond 5 years. Complies with the requirements of Title 33 of the US CFR, Part 67 for use on Class “A” “B” and “C” PATON structures.


Technical Data
Optical- 445 cd peak intensity (as per IALA rating); see table
- High Flux Surface Mount LEDs with colour-specific temperature-corrected LED driver provides consistent intensity under all operating conditions

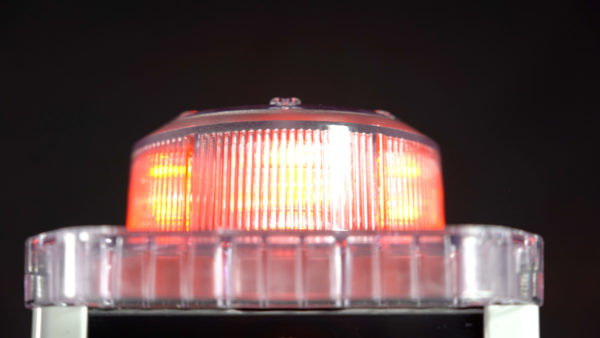

- IALA compliant chromaticities; Red, Green, White, and Yellow
- Custom optical design
- 250+ flash patterns (including steady-on)
- Vertical Divergence 8o or 10o (FWHM)
Energy Collection- Best-in-class high-efficiency solar cells
- Optional external charge port and charger
Battery- Multiple battery pack options available (refer to weight table) including best-in-class pack with extreme temperature range
- Battery status and voltage clearly indicated on integrated LED display
- Designed for 5 year battery life; Replaceable and recyclable
Energy Management System (EMS)- Intelligent, microprocessor EMS
- On-board diagnostics
Automatic Light Control (ALC)When enabled, ALC adjusts output intensity in response to unusually low amounts of sunlight to ensure continued operation
Programming- Programmable with optional infrared programmer
- Integrated 4-character LED display
GPS SynchronizationOptional GPS enables two or more lanterns to flash in unison
Construction- Premium grade UV resistant, polycarbonate lens/head and polycarbonate/polysiloxane co-polymer base
- Environmentally-friendly, super durable powdercoated aluminum chassis (applied by trivalent chromate process)
- Thermoplastic gaskets
- Waterproof, vented battery compartment
- Top colour indicator matches LED colour
- Integrated handle
Temperature- 22 to 122 oF (-30°C to 50°C) operating
- 40 to 176 oF (-40°C to 80°C) storage
WeightRefer to weight table
Mounting3 or 4 bolt 7.87” (200 mm) mounting pattern
Wind Loading140 knots (72 m/s)
Ice Loading0.03 psi (22 kg/m²)
Shock & VibrationMIL-STD-202G (for Shock and Vibration)
Ingress- IP 68 immersion
- MIL-STD-202G immersion & damp heat cycling
- MIL-STD-810G rain & salt fog
Compliance- USCG PATON 33CFR66. 33CFR67
Class B & C
Monitoring- Contact your sales representative for details
