AIS-KIT-NAi-T3
ORIGINAL NAi KIT
- Automatic Identification System (AIS) Type 3 (transmit)
- Position reporting of navigational aids and obstacles to navigation (message 21) selectable
- Support for x10 virtual AtoN
- Seamless integration onto the Sabik Offshore NAi bus
- Easy mounting and simple electrical connection
- Low power consumption

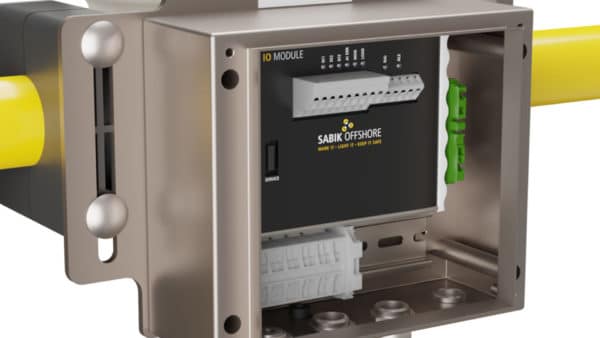

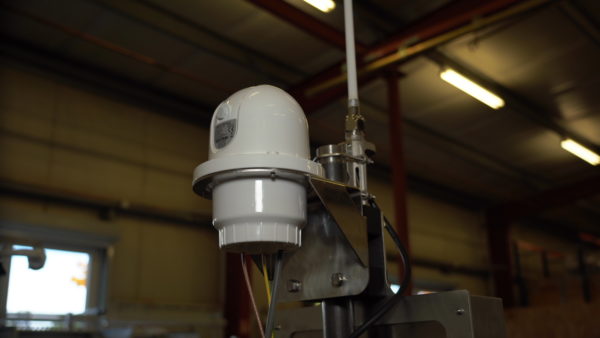

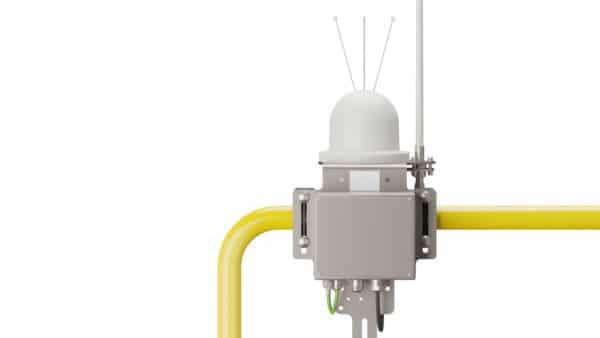

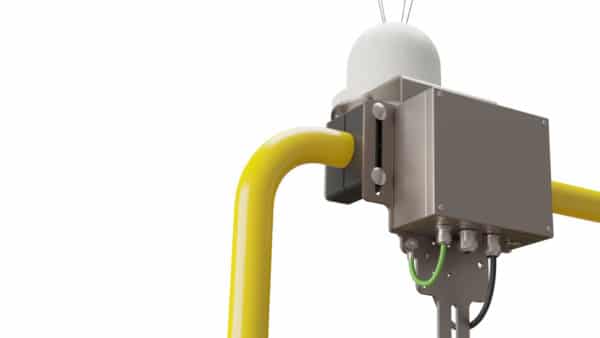

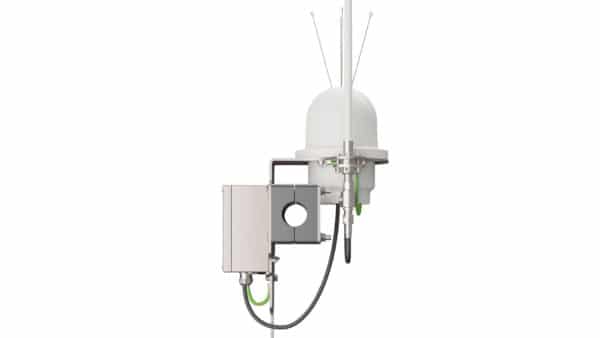

The AIS-KIT-NAI-T3 combines the SRT AIS with the Sabik Offshore NAi system. A stainless-steel junction box allows for superior performance against corrosion in harsh offshore environments.

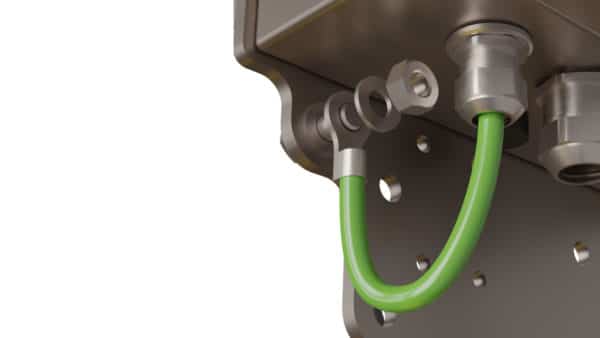

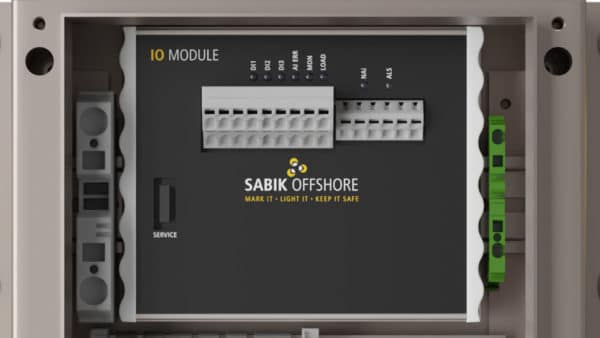

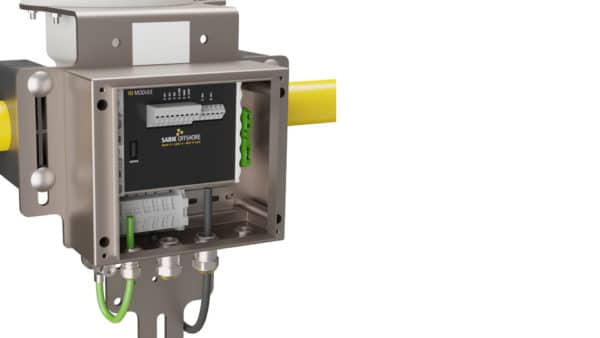

Seamless integration into the Sabik Offshore NAi system allows for accurate monitoring and simple electrical connection. The AIS includes an integrated GPS antenna and external VHF antenna.
Technical Data

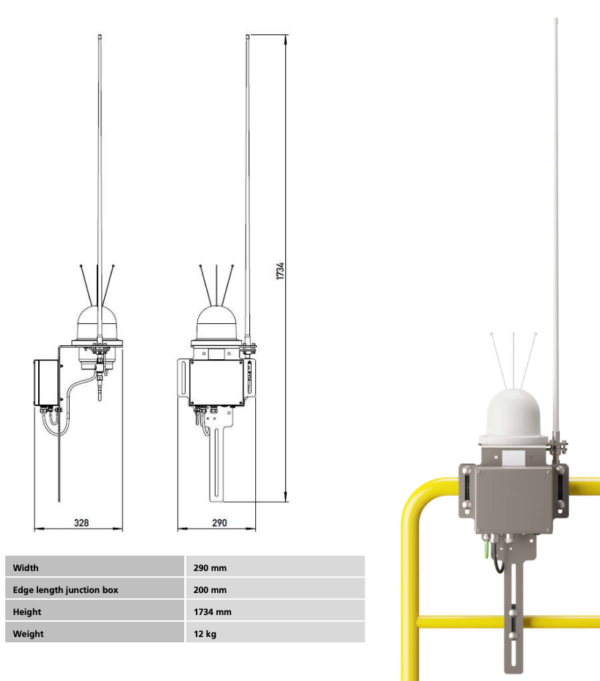

| DIMENSIONS & WEIGHT | |
| Width | 290 mm |
| Edge length junction box | 200 mm |
| Height | 1734 mm |
| Weight | 12 kg |
| MATERIAL | |
| Housing Junction Box | Stainless steel 316 L / 1.4404 |
| Bracket | Stainless steel 316 L / 1.4404 |
| Cable Gland | Nickel-plated brass |
| ELECTRICAL CONNECTION | |
| Electrical connection | Spring terminal block, max. 2.5 mm² |
| Operating voltage VIN | DC 24.0 V (-25 % / +25 %) |
| Power consumption (average) (RATMA, Msg#21, 3 minute intervals) | 0.85 W |
| ENVIRONMENTAL CONDITIONS | |
| Ambient temperature (operation) | -25 °C to 55 °C |
| Ambient temperature (storage / transport) | -40 °C to 70 °C |
| Humidity (operation / storage / transport) | 95 % r.h. up to 45 °C 70 % r.h. for T > 45 °C |
| Degree of protection (acc. To IEC 60529) | IP67 |
| Lightning protection zone (acc. to IEC 62305-4:2010) | LPZ0B |
| ELECTRICAL SAFETY AND HEALTH | |
| Protection class | Class III |
| Overvoltage protection | Class III |
| Pollution degree | 3 |
| VHF TRANSCEIVER | |
| Transmitter | x 1 |
| Receiver | x 2 |
| Frequency | 156.025 to 162.025 MHz in 25 KHz steps |
| Output Power | 1 W |
| GPS-RECEIVER AND ANTENNA | |
| Channels | 50 |
| IEC 61108-1 | Compliant |
| GPS antenna | Internal |
Documents
Datasheet AIS-KIT-NAI-T3
