SWS050-N-AC

WEATHER SENSOR / VISIBILITY METER

Compact and well proven present weather visibility sensor specially selected to be integrated in the Orga Aviation obstruction light systems, which are required to adjust the operating intensity of the obstruction light in accordance with present visibility conditions.

Technical Data

PHYSICAL CHARACTERISTICS
Operating temperature range	-40 °C to +60 °C
Design degree of protection	IP66
Material	Powder coated aluminium
Weight	5 kg

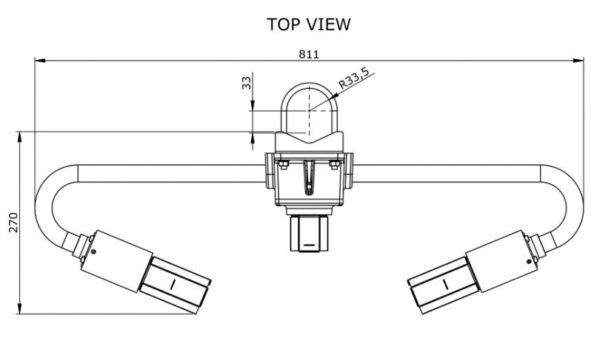

Dimensions (L x W x H)	811 x 270 x 375 mm
Shipping information	920 x 350 x 480 – 13kg (including Strobeline cable)
Cable bending radius static	7x cable diameter
Outer cable diameter	Ø12.5 +/- 0.5 mm
Cable weight	260 g/m
ELECTRICAL CHARACTERISTICS
Operating voltage	120-240Vac nominal 50-60Hz
Power consumption	See table
