LA40
LA Series Worklight
- Heavy Duty Housing
- Low Power Consumption
- Long Life LED’s
- Low Maintenance
- Fit for Offshore Use

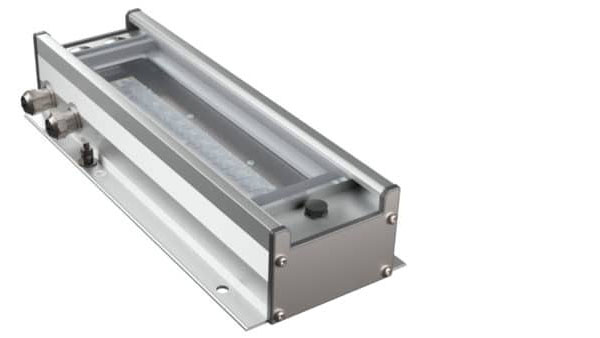

The LA series is a highly efficient and rugged LED light fixture for harsh offshore conditions.
The versatile design with four optical variations can be used for different applications such as work & walkway lights, ID sign lights, etc.
Utilizing low power to provide high output, the LA series is rugged and low maintenance.
Technical Data
| DIMENSIONS & WEIGHT | |
| Height | 85 mm |
| Width | 156 mm |
| Length | 417 mm |
| Weight | 2,6 kg |
| MATERIAL | |
| Housing / Profile | Extruded Seawater resistant anodized aluminum |
| End lid | Stainless steel 316 L / 1.4404 |
| Gasket | EPDM A-KF 25-00 (25 ShA) |
| Glass | UV resistant clear polycarbonate |
| ELECTRICAL CONNECTION | |
| Type | LA40-AC |
| Operating Voltage | AC & DC Versions under electrical connection type: have LA40-AC & LA40 DC |

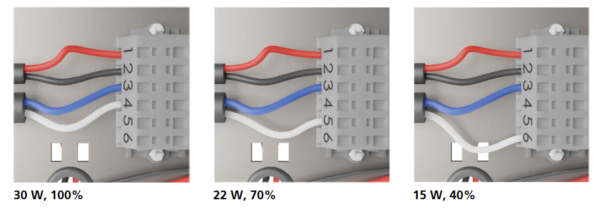

| Power cons. | 30 W |

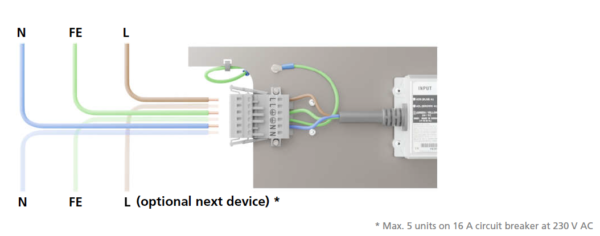

| Connection | Live-L, Neu.-N, Y/G-PE |
| ENVIRONMENTAL CONDITIONS | |
| Ambient temperature (operation) | -25°C to 55°C |
| Ambient temperature (storage / transport) | -25°C to 70°C |
| Humidity (operation / storage / transport) | 95% r.h. up to 45°C 70% r.h. for T > 45°C |
| Atmospheric pressure (operation / storage / transport) | 80 kPa to 108 kPa |
| Degree of protection (acc. To IEC 60529) | IP66 & IP67 |
| Luminaire classification (acc. to EN 60598-1:2018) | Rough service luminaire |
| ELECTRICAL SAFETY AND HEALTH | |
| Protection class | Class I |
| Overvoltage protection | Class III |
| Pollution degree | 3 |
| RELIEABILITY | |
| Minimum LED lifetime | 100 000 h |
