GPS NAi
GPS Unit
- Exact day-night switching and GPS-precise synchronisation of all flashcode generators according to IALA standard in the NAi network
- GPS/GLONASS based UTC time base
- Integrated ambient light measurement with programmable switching threshold
- NAi bus interface for power supply and communication
- More than 2 hours of holdover performance for the synchronisation

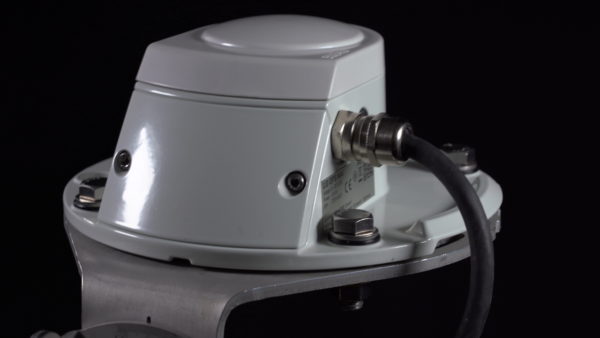

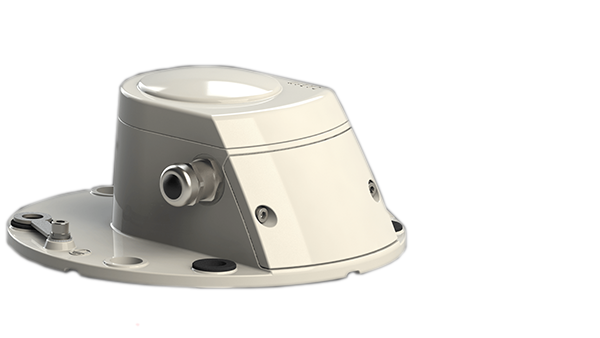

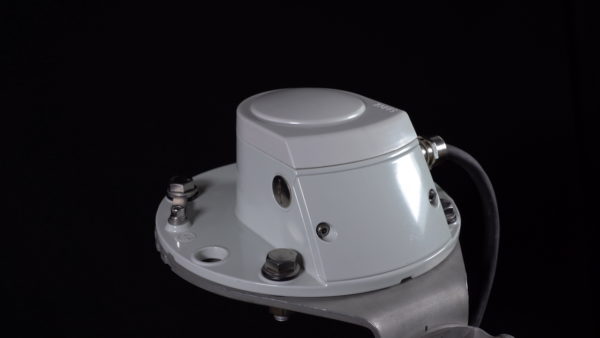

The SABIK GPS NAi is a GPS device that provides day-night information and synchronisation pulses for the flash codes in the network of a structure marking system, based on a very precise GPS/GLONASS time stamp and an integrated ambient light sensor.
The day-night switching occurs depending on
- The ambient brightness and
- The current date in conjunction with the Cuxhaven calendar (North Sea or Baltic Sea) or
- The geographic position of the device according to the astronomical clock.
The exact flash code synchronisation of the connected navigation light components is guaranteed even in the event of a weak or absent GPS/GLONASS signal over a time period of at least 2 hours.
Technical Data
| DIMENSIONS AND WEIGHT | |
| Diameter x Height | 230 mm x 101 mm |
| Weight | approx. 1,76 kg |
| ELECTRICAL CONNECTION | |
| Electric connection | Spring terminal block, max. 2.5 mm² |
| Operating voltage VIN | 9 to 36 V DC |
| Power consumption (VIN=24 V DC - max. intensity) | 400 mW |
| ENVIRONMENTAL CONDITIONS | |
| Regulations | IEC 60945, device type ‘exposed’ |
| Ambient temperature (operation) | -40 °C to 55 °C |
| Ambient temperature (storage / transport) | -40 °C to 70 °C |
| Humidity (operation / storage / transport) | max. 95 % acc. to IEC 60945 |
| Atmospheric pressure (operation / storage / transport) | 80 kPa to 108 kPa |
| Degree of protection (acc. to IEC 60529) | IP67 |
| Protection class | Class III |
| MECHANICAL REQUIREMENTS | |
| Vibration testing sinusoidal vibrations | acc. to IEC 60945 |
| RELIABILITY | |
| MTBF Electronics | 1 320 000 h |
| MATERIAL | |
| Housing (device foot, cover for socket) | Anodised, powder-coated aluminium (ALSi) |
| Housing head | ABS/PC |
| Cable gland | Nickel-plated brass |
| Earthing connection | Nickel-plated brass |
| Cover indicator LED | MAKROLON® (PC) |
| Insulation sleeves | PA |
| Seals | TPE, injection-molded |
| Pressure compensation valve for socket and housing | PTFE membrane |
Documents
Datasheet GPS NAi
